Populaire specificaties |
|
|---|---|
|
|
2066 |
|
|
Intel X299 |
|
|
ATX (Standard) |
|
|
8x DDR4 |
|
|
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G |
|
|
4x PCI-e 3.0 x16 |
Socket en CPU |
|
|---|---|
|
|
2066 |
Form factor, bios en chipset |
|
|---|---|
|
|
ATX (Standard) |
|
|
Intel X299 |
Geheugen |
|
|---|---|
|
|
8x DDR4 |
|
|
256GB |
Opslag |
|
|---|---|
|
|
2x M.2 (PCI-e 3.0 x4 + SATA), 6x SATA-600 |
|
|
0, 1, 5, 10 |
Uitbreidingsslots |
|
|---|---|
|
|
4x PCI-e 3.0 x16 |
|
|
4x |
| Opmerkingen uitbreidingsslots |
4x PCIe 3.0 x16 slots 2 x M.2 slot (Key M) Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2,3 Intel® Optane™ Memory Ready4 The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M2_1 slot.The M2_2 default setting is CPU lane. However, when a PCIe expansion card is installed in the PCI_E2 slot, the M2_2 will be automatically switched to PCH lane.The SATA2 connector will be unavailable when M2_2 uses PCH lanes and a M.2 SATA SSD is installed in the M2_2 slot.M2_2 supports Intel® Optane™ Memory by switching to PCH lanes. Support x16/x8/x16/x8 mode with the 48-lane CPU. Support x16/x4/x16/x8 mode with the 44-lane CPU. Support x16/x4/x8/x0 mode with the 28-lane CPU. |
Netwerk |
|
|---|---|
|
|
1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps, 1x Ethernet 10G/1G |
| Netwerkcontroller | Marvell AQtion AQC107 |
| Tweede netwerkcontroller | Realtek RTL8125-CG |
| Derde netwerkcontroller | Intel I219V |
| Netwerkcontroller(s) | AQC107, Intel I219V, Realtek RTL8125-CG |
Aansluitingen |
|
|---|---|
| Overige aansluitingen | 1x PS/2 |
(Fan) headers |
|
|---|---|
| Headers (fan/water) | 4x 4-pins (totaal) |
RGB |
|
|---|---|
|
|
|
Audio |
|
|---|---|
| Audio kanalen | 8 (7.1) |
| Audio-aansluitingen | 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF) |
| Audiochip | Realtek ALC1220 |
Garantie en bijzonderheden |
|
|---|---|
| Bijzonderheden | 10Gbit netwerk wordt geleverd op een losse netwerkkaart. 1Gbit en 2,5Gbit zijn wel ingebouwd. |
Meer informatie |
|
|---|---|

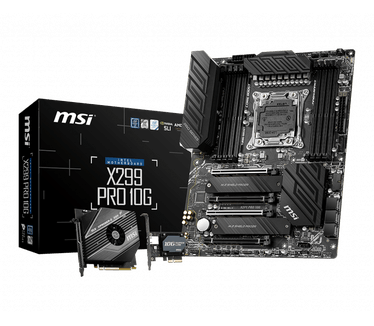

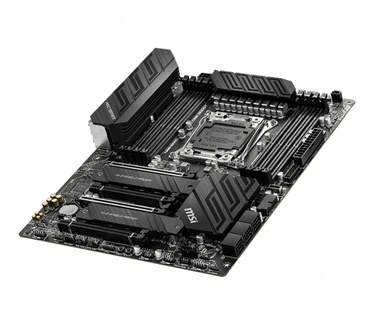

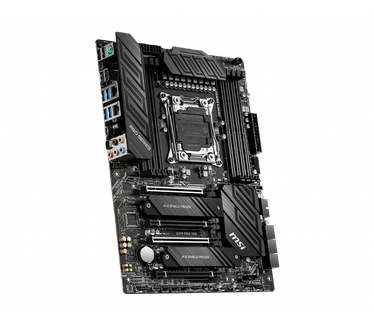

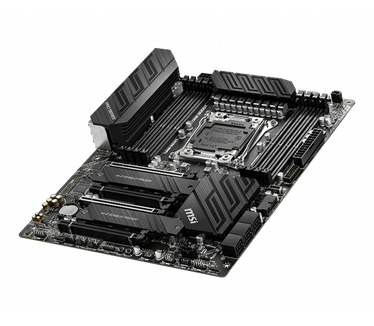

| Product | MSI X299 Pro 10G |
| Categorie | Moederborden |
| Merk | MSI |
| Tweakers ID | 1472712 |
| EAN | 4719072678654 |
| SKU | 7B94-002R, X299 Pro 10G, X299-Pro-10G |
| Specs van de fabrikant | Productinformatie |
