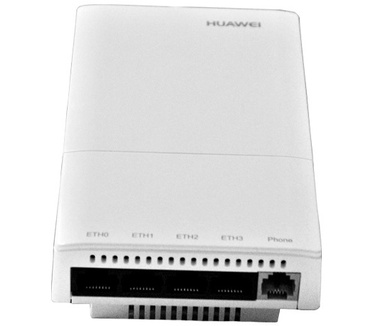

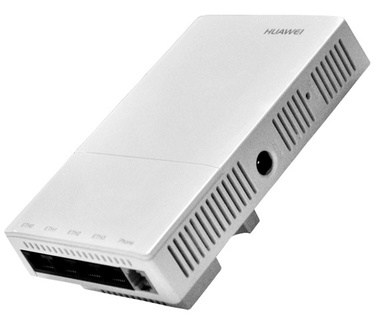

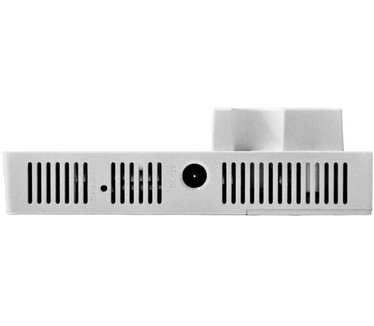

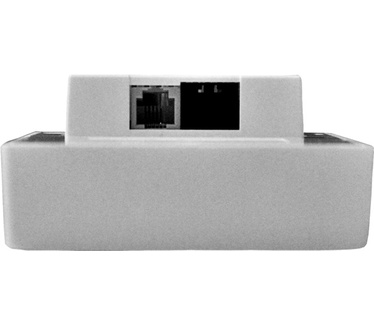

Huawei AP2030DN

Populaire specificaties
Netwerkproduct	Access Point
Wi-Fi band	2,4GHz, 5GHz (band 1)
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet (RJ45)	1x Ethernet 1Gbps, 4x Ethernet 100Mbps
Wi-Fi max (totaal)	1,167Gbps
5GHz max (totaal)	867Mbps

Wi-Fi en Bluetooth
Netwerkproduct	Access Point
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
5GHz max (totaal)	867Mbps
Wi-Fi max (totaal)	1,167Gbps
Wi-Fi band	2,4GHz, 5GHz (band 1)
Wi-Fi eigenschappen	Quality of Service

Antenne
Gevoeligheid ontvanger	2.4 GHz, 802.11b (CCK):\n\n-101 dBm @ 1 Mbit/s\n-96 dBm @ 2 Mbit/s\n-94 dBm @ 5.5 Mbit/s\n-90 dBm @ 11 Mbit/s\n\n2.4 GH,z 802.11g (Non-HT20):\n\n-95 dBm @ 6 Mbit/s\n-95 dBm @ 9 Mbit/s\n-94 dBm @ 12 Mbit/s\n-92 dBm @ 18 Mbit/s\n-88 dBm @ 24 Mbit/s\n-85 dBm @ 36 Mbit/s\n-81 dBm @ 48 Mbit/s\n-79 dBm @ 54 Mbit/s\n\n2.4 GHz, 802.11n (HT20):\n\n-95 dBm @ MCS0\n-94 dBm @ MCS1\n-92 dBm @ MCS2\n-87 dBm @ MCS3\n-84 dBm @ MCS4\n-79 dBm @ MCS5\n-78 dBm @ MCS6\n-77 dBm @ MCS7\n-93 dBm @ MCS8\n-92 dBm @ MCS9\n-90 dBm @ MCS10\n-85 dBm @ MCS11\n-82 dBm @ MCS12\n-77 dBm @ MCS13\n-76 dBm @ MCS14\n-75 dBm @ MCS15\n\n2.4 GHz, 802.11n (HT40):\n\n-93 dBm @ MCS0\n-91 dBm @ MCS1\n-89 dBm @ MCS2\n-84 dBm @ MCS3\n-81 dBm @ MCS4\n-77 dBm @ MCS5\n-75 dBm @ MCS6\n-74 dBm @ MCS7\n-91 dBm @ MCS8\n-89 dBm @ MCS9\n-87 dBm @ MCS10\n-82 dBm @ MCS11\n-79 dBm @ MCS12\n-75 dBm @ MCS13\n-73 dBm @ MCS14\n-72 dBm @ MCS15\n\n5 GHz, 802.11a (Non-HT20):\n\n-94 dBm @ 6 Mbit/s\n-94 dBm @ 9 Mbit/s\n-93 dBm @ 12 Mbit/s\n-91 dBm @ 18 Mbit/s\n-87 dBm @ 24 Mbit/s\n-84 dBm @ 36 Mbit/s\n-79 dBm @ 48 Mbit/s\n-78 dBm @ 54 Mbit/s\n\n5 GHz, 802.11n (HT20):\n\n-94 dBm @ MCS0\n-93 dBm @ MCS1\n-90 dBm @ MCS2\n-86 dBm @ MCS3\n-83 dBm @ MCS4\n-78 dBm @ MCS5\n-77 dBm @ MCS6\n-76 dBm @ MCS7\n-92 dBm @ MCS8\n-91 dBm @ MCS9\n-88 dBm @ MCS10\n-84 dBm @ MCS11\n-81 dBm @ MCS12\n-76 dBm @ MCS13\n-75 dBm @ MCS14\n-74 dBm @ MCS15\n\n5 GHz, 802.11n (HT40):\n\n-91 dBm @ MCS0\n-90 dBm @ MCS1\n-87 dBm @ MCS2\n-83 dBm @ MCS3\n-80 dBm @ MCS4\n-76 dBm @ MCS5\n-74 dBm @ MCS6\n-73 dBm @ MCS7\n-89 dBm @ MCS8\n-88 dBm @ MCS9\n-85 dBm @ MCS10\n-81 dBm @ MCS11\n-78 dBm @ MCS12\n-74 dBm @ MCS13\n-72 dBm @ MCS14\n-71 dBm @ MCS15\n\n5 GHz, 802.11ac (VTH20):\n\n-95 dBm @ MCS0NSS1\n-93 dBm @ MCS1NSS1\n-90 dBm @ MCS2NSS1\n-86 dBm @ MCS3NSS1\n-83 dBm @ MCS4NSS1\n-78 dBm @ MCS5NSS1\n-77 dBm @ MCS6NSS1\n-75 dBm @ MCS7NSS1\n-71 dBm @ MCS8NSS1\n-93 dBm @ MCS0NSS2\n-91 dBm @ MCS1NSS2\n-88 dBm @ MCS2NSS2\n-84 dBm @ MCS3NSS2\n-81 dBm @ MCS4NSS2\n-76 dBm @ MCS5NSS2\n-75 dBm @ MCS6NSS2\n-73 dBm @ MCS7NSS2\n-69 dBm @ MCS8NSS2\n\n5 GHz, 802.11ac (VTH40):\n\n-91 dBm @ MCS0NSS1\n-90 dBm @ MCS1NSS1\n-88 dBm @ MCS2NSS1\n-83 dBm @ MCS3NSS1\n-80 dBm @ MCS4NSS1\n-76 dBm @ MCS5NSS1\n-74 dBm @ MCS6NSS1\n-72 dBm @ MCS7NSS1\n-68 dBm @ MCS8NSS1\n-66 dBm @ MCS9NSS1\n-89 dBm @ MCS0NSS2\n-88 dBm @ MCS1NSS2\n-86 dBm @ MCS2NSS2\n-81 dBm @ MCS3NSS2\n-78 dBm @ MCS4NSS2\n-74 dBm @ MCS5NSS2\n-72 dBm @ MCS6NSS2\n-70 dBm @ MCS7NSS2\n-65 dBm @ MCS8NSS2\n-63 dBm @ MCS9NSS2\n\n5 GHz, 802.11ac (VTH80):\n\n-88 dBm @ MCS0NSS1\n-87 dBm @ MCS1NSS1\n-84 dBm @ MCS2NSS1\n-80 dBm @ MCS3NSS1\n-77 dBm @ MCS4NSS1\n-73 dBm @ MCS5NSS1\n-71 dBm @ MCS6NSS1\n-69 dBm @ MCS7NSS1\n-65 dBm @ MCS8NSS1\n-63 dBm @ MCS9NSS1\n-86 dBm @ MCS0NSS2\n-85 dBm @ MCS1NSS2\n-82 dBm @ MCS2NSS2\n-78 dBm @ MCS3NSS2\n-75 dBm @ MCS4NSS2\n-71 dBm @ MCS5NSS2\n-69 dBm @ MCS6NSS2\n-67 dBm @ MCS7NSS2\n-62 dBm @ MCS8NSS2\n-60 dBm @ MCS9NSS2
Zendvermogen	21dBmW

Bedraad netwerk en USB
Ethernet (RJ45)	1x Ethernet 1Gbps, 4x Ethernet 100Mbps
Power-over-Ethernet-poorten	1x PoE (802.3af)

Eigenschappen
IPv6 ondersteuning
Access Point eigenschappen	Mac adres filtering, VLAN-ondersteuning
Kanalen	24x
Stroomverbruik	8,7W

Afmetingen en gewicht
Hoogte	41,5mm
Breedte	86mm
Diepte	140mm
Gewicht	230g

Meer informatie
Product	Huawei AP2030DN
Categorie	Accesspoints
Merk	Huawei
Tweakers ID	995927
EAN	6901443057368
SKU	50082640, AP2030DN
Specs van de fabrikant	Productinformatie
