Gigabyte GA-9SISL

Populaire specificaties
Socket	CPU onboard
Form Factor	Mini-ITX
Geheugentype (moederbord)	4x DDR3
Ethernet (RJ45)	4x Ethernet 1Gbps, 1x Ethernet 100Mbps
Uitbreidingsslots	1x PCI-e 2.0 x16
Maximum grootte werkgeheugen	64GB

Socket en CPU
Socket	CPU onboard
Cpu/soc	Intel Atom C2758
Klokfrequentie	2,4GHz
Maximaal TDP processor	20W

Form factor, bios en chipset
Form Factor	Mini-ITX

Geheugen
Geheugentype (moederbord)	4x DDR3
Maximum grootte werkgeheugen	64GB

Opslag
Hardeschijf bus (intern)	4x SATA-300, 2x SATA-600

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 2.0 x16
Totaal PCI-e x16	1x

Netwerk
Ethernet (RJ45)	4x Ethernet 1Gbps, 1x Ethernet 100Mbps
Netwerkcontroller	Intel I354
Netwerkcontroller(s)	Intel I354

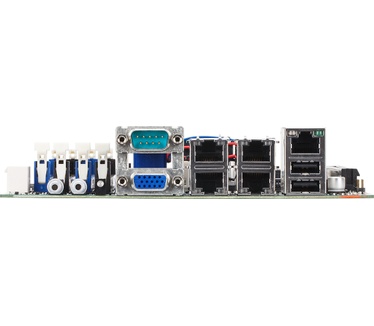

Aansluitingen
Video uit	1x VGA (D-Sub)
Totaal video-uitgangen	1
Overige aansluitingen	1x Serieel (9-pins)

RGB
LED verlichting

Garantie en bijzonderheden

Bijzonderheden

Supports unbuffered ECC or non-ECC UDIMM modules Supports single rank and dual rank UDIMM modules Supports 1.35V and 1.5V modules 4 x GbE LAN ports (Intel® I354) 1 x 10/100 management LAN Integrated in Aspeed® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp 1 x TPM header Aspeed® AST2400 management controller Avocent® MergePoint IPMI 2.0 web interface: - Network settings - Network security settings - Users control - Services settings - IPMI settings - Sessions control - LDAP settings - Power control - Voltages, fans and temperatures monitoring - System event log - Events management (platform events, trap settings, email settings) - Serial Over LAN - vKVM & vMedia (launch, configuration)

Meer informatie
Product	Gigabyte GA-9SISL
Categorie	Moederborden
Merk	Gigabyte
Tweakers ID	405184
SKU	9M9SISLMR-00, GA-9SISL
