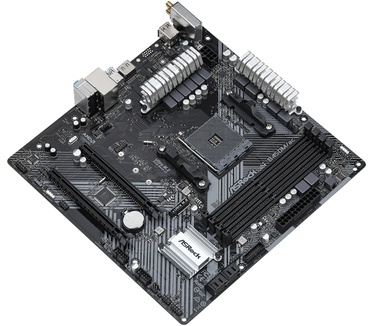

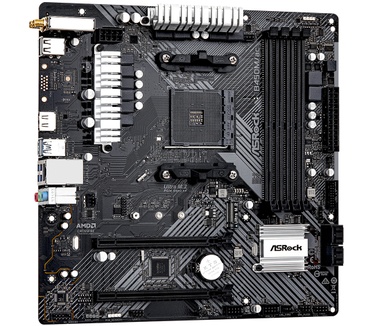

ASRock B450M/ac R2.0

Populaire specificaties
Socket	AM4
Moederbordchipset	AMD B450
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet (RJ45)	1x Ethernet 1Gbps

Socket en CPU
Socket	AM4

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	AMD B450

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Overklokprofielen	Intel XMP
Opmerkingen geheugen	- AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory *For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs. Please refer to below table for AMD non-XMP memory frequency support.

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4), 4x SATA-600
Raid-modi	0, 1, 10
Opmerkingen opslag	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)
M.2 op CPU	Onbekend

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 2.0 x16, 1x PCI-e 3.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode) AMD Ryzen series CPUs (Picasso, Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)* - 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps
Netwerkcontroller	Realtek RTL8111H
Netwerkcontroller(s)	Realtek RTL8111H

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth	Bluetooth 4.2

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header

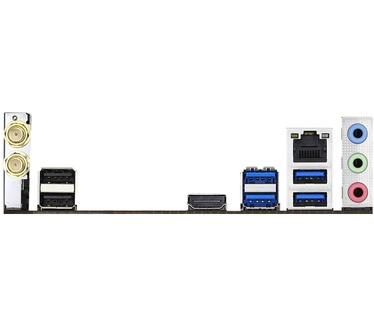

USB/TB extern	2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A
Video uit	1x HDMI
Totaal video-uitgangen	1
Hoogste HDMI versie	HDMI 1.4

(Fan) headers
Headers (fan/water)	2x 4-pins (totaal)
(default) Fanconfiguratie	- 1 x CPU Fan Connector (4-pin)**** - 1 x Chassis Fan Connector (3-pin)***** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****** ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

RGB
RGB-headers	1x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Microfoon (ingang)
Audiochip	Realtek ALC892 / ALC897

Vrm
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASRock B450M/ac R2.0
Categorie	Moederborden
Merk	ASRock
Tweakers ID	2262186
EAN	4710483932809
SKU	90-MXBEF0-A0UAYZ, B450M/AC R2.0
Specs van de fabrikant	Productinformatie
