Specificaties en productafbeeldingen

Verkrijgbaar sinds: 30 mei 2025 - Beschikbaar bij 13 winkels

Populaire specificaties

Socket AM5
Moederbordchipset AMD B850
Form Factor Micro-ATX (µATX)
Geheugentype (moederbord) 4x DDR5
Verbinding (wlan) 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45) 1x Ethernet 1Gbps

Socket en CPU

Socket AM5

Form factor, bios en chipset

Form Factor Micro-ATX (µATX)
Moederbordchipset AMD B850

Geheugen

Geheugentype (moederbord) 4x DDR5
Maximum grootte werkgeheugen 256GB

Opslag

Hardeschijf bus (intern) 1x M.2 (PCI-e 4.0 x2), 1x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600
Raid-modi 0, 1, 5, 10
Opmerkingen opslag AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD B850 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
M.2 op CPU WEL op cpu

Uitbreidingsslots

Uitbreidingsslots 3x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16 4x
Opmerkingen uitbreidingsslots AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
3 x PCIe 4.0 x16 slot (support x1 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
3 x PCIe 4.0 x16 slot (support x1 mode)

Netwerk

Ethernet (RJ45) 1x Ethernet 1Gbps
Netwerkcontroller Realtek (variant)
Netwerkcontroller(s) Realtek (variant)

Wifi en bluetooth

Verbinding (wlan) 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth Bluetooth 5.4

Aansluitingen

USB/TB intern (front) 2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G1, 5Gbit/s) header
USB/TB extern 5x USB 2.0 type-A, 2x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C
Video uit 1x DisplayPort, 1x HDMI
Totaal video-uitgangen 2
Hoogste HDMI versie HDMI 2.1
Hoogste DisplayPort versie DisplayPort 1.4
Overige aansluitingen 1x Serieel (header), 1x TPM header

(Fan) headers

Headers (fan/water) 7x 4-pins (totaal)
(default) Fanconfiguratie 1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

RGB

RGB-headers 3x 3-pins (ARGB)
LED verlichting

Overige eigenschappen

Eigenschappen moederbord BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Foutdiagnose Diagnose-leds

Audio

Audio kanalen 8 (7.1)
Audio-aansluitingen 2x Analoog (uitgang), 1x Microfoon (ingang)

Vrm

Type stroomvoorziening Losse mosfets

Meer informatie

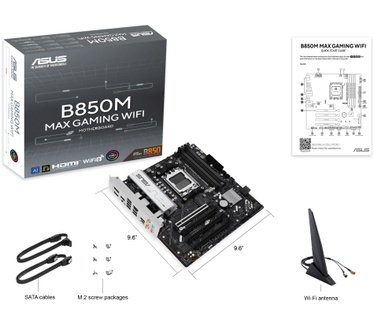

Product ASUS B850M MAX GAMING WIFI
Categorie Moederborden
Merk ASUS
Tweakers ID 2218918
EAN 4711636062343
SKU 90MB1LL0-M0EAY0
Specs van de fabrikant Productinformatie
