Populaire specificaties |
|
---|---|
|
1700 |
|
Intel H610 |
|
Micro-ATX (µATX) |
|
2x DDR4 |
|
1x Ethernet 1Gbps |
|
1x M.2, 1x PCI-e 3.0 x1, 1x PCI-e 4.0 x16 |
Socket en CPU |
|
---|---|
|
1700 |
Form factor, bios en chipset |
|
---|---|
|
Micro-ATX (µATX) |
|
Intel H610 |
Geheugen |
|
---|---|
|
2x DDR4 |
|
64GB |
|
Intel XMP |
Opmerkingen geheugen |
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Opslag |
|
---|---|
|
1x M.2 (PCI-e 3.0 x4), 4x SATA-600 |
Uitbreidingsslots |
|
---|---|
|
1x M.2, 1x PCI-e 3.0 x1, 1x PCI-e 4.0 x16 |
|
1x |
Opmerkingen uitbreidingsslots |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 - 1 x M.2 Socket 1 connector, for the CNVi wireless communication module (M2_WIFI) |
Netwerk |
|
---|---|
|
1x Ethernet 1Gbps |
Netwerkcontroller | Realtek RTL8111H |
Netwerkcontroller(s) | Realtek RTL8111H |
Aansluitingen |
|
---|---|
USB/TB intern (front) | 1x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G1, 5Gbit/s) header |
|
4x USB 2.0 type-A, 1x USB 3.2 (Gen1, 5Gb/s) type-A |
|
1x DisplayPort, 1x HDMI |
Totaal video-uitgangen | 2 |
Hoogste HDMI versie | HDMI 2.1 |
Hoogste DisplayPort versie | DisplayPort 1.2 |
Overige aansluitingen | 1x Serieel (header), 1x TPM header |
Opmerkingen aansluitingen | Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
(Fan) headers |
|
---|---|
Headers (fan/water) | 3x 4-pins (totaal) |
(default) Fanconfiguratie |
1 x CPU fan header 2 x system fan headers |
RGB |
|
---|---|
|
|
Audio |
|
---|---|
Audio kanalen | 8 (7.1) |
Audio-aansluitingen | 2x Analoog (uitgang), 1x Microfoon (ingang) |
Audiochip | Realtek ALC897 |
Vrm |
|
---|---|
|
Losse mosfets |
Garantie en bijzonderheden |
|
---|---|
Fabrieksgarantie | 3 jaar carry in |
Meer informatie |
|
---|---|

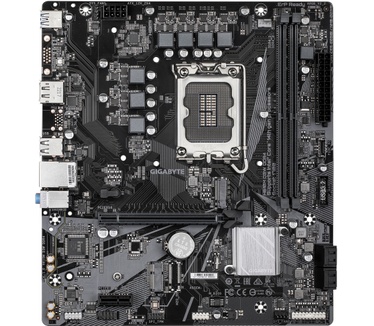

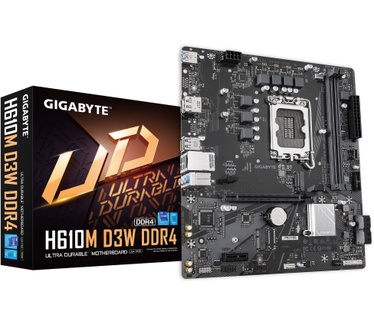

Product | Gigabyte H610M D3W DDR4 |
Categorie | Moederborden |
Merk | Gigabyte |
Tweakers ID | 2153348 |
EAN | 4719331865245 |
SKU | H610M D3W DDR4 |
Specs van de fabrikant | Productinformatie |
