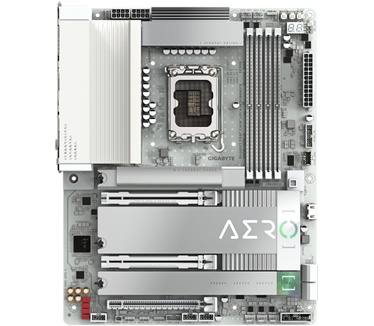

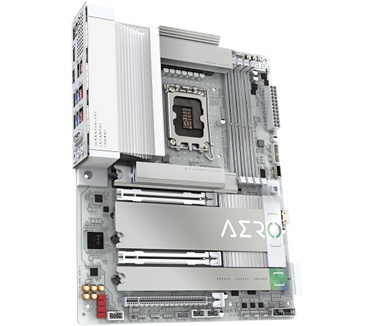

Name: Gigabyte Z890 AERO G
Brand: Gigabyte

Specificaties en productafbeeldingen

Populaire specificaties
Socket	1851
Moederbordchipset	Intel Z890
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet (RJ45)	2x Ethernet 2.5Gbps

Socket en CPU
Socket	1851

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z890

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	256GB
Compatible modules	CUDIMM, ECC (in non-ECC mode)
Overklokprofielen	Intel XMP
Opmerkingen geheugen	Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	5x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 4.0 x16, 2x PCI-e 5.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Bluetooth 5.4
Wifi-controller	Intel Wi-Fi 7 BE202

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
USB/TB extern	1x Thunderbolt 4 type-C, 2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A
Video uit	1x HDMI, 1x Thunderbolt 4
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x TPM header
Opmerkingen aansluitingen	1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

(Fan) headers
Headers (fan/water)	6x 4-pins (totaal)
(default) Fanconfiguratie	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting

Overige eigenschappen
Onboard knoppen	Power, Reset

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC1220
