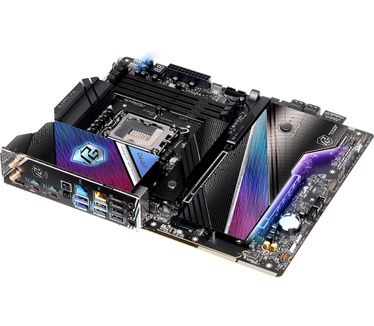

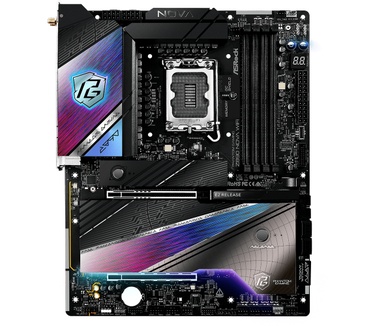

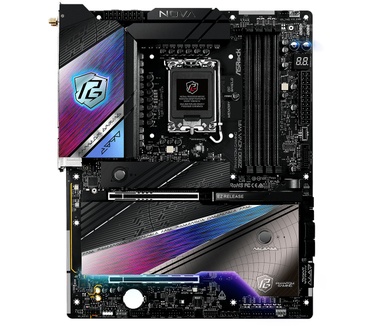

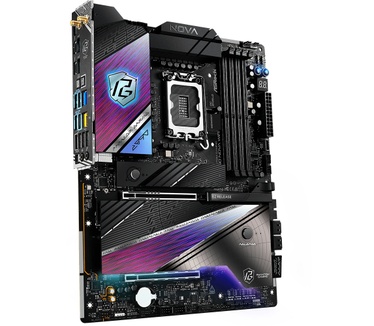

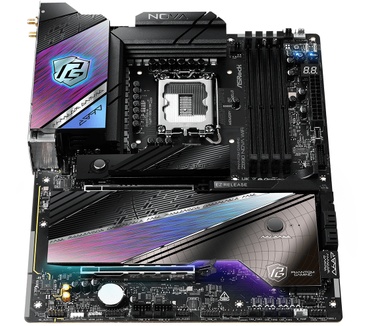

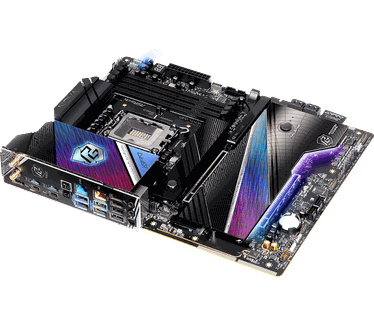

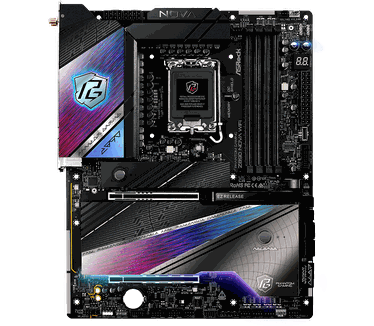

ASRock Phantom Gaming Z890 Nova WiFi

Populaire specificaties
Socket	1851
Moederbordchipset	Intel Z890
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 5Gbps

Socket en CPU
Socket	1851

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z890

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	256GB
Compatible modules	CUDIMM
Overklokprofielen	Intel XMP
Opmerkingen geheugen	1DPC 1R Up to 9200+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively.

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x4 + SATA), 4x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	6x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks If PCIE2 is occupied, M2_4 will be disabled. - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x M.2, 1x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. If PCIE2 is occupied, M2_4 will be disabled. Supports NVMe SSD as boot disks

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 5Gbps
Netwerkcontroller	Realtek RTL8126
Tweede netwerkcontroller	Killer E3100G
Netwerkcontroller(s)	Killer E3100G, RTL8126

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Bluetooth 5.4

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header

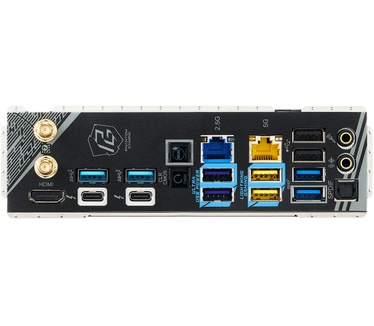

USB/TB extern	2x Thunderbolt 4 type-C, 2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 4x USB 3.2 (Gen2, 10Gb/s) type-A
Video uit	1x HDMI, 2x Thunderbolt 4
Totaal video-uitgangen	3
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4

(Fan) headers
Headers (fan/water)	8x 4-pins (totaal)
(default) Fanconfiguratie	- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Onboard knoppen	Clear CMOS, Power, Reset
Eigenschappen moederbord	BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC4080

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	110A
Aantal VCore-powerstages	20x
Rating VCore-vrm	2.200A
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASRock Phantom Gaming Z890 Nova WiFi
Categorie	Moederborden
Merk	ASRock
Serie	Phantom Gaming
Tweakers ID	2121332
EAN	4710483949708
SKU	90-MXBPS0-A0UAYZ, PG Z890 Nova WiFi, Phantom Gaming Z890 Nova WiFi
Specs van de fabrikant	Productinformatie
