Populaire specificaties |
|
---|---|
|
AM4 |
|
AMD B550 |
|
Mini-ITX |
|
4x DDR4 |
|
2x Ethernet 1Gbps, 1x Ethernet 10G/1G |
|
1x PCI-e 4.0 x16 |
Socket en CPU |
|
---|---|
|
AM4 |
Form factor, bios en chipset |
|
---|---|
|
Mini-ITX |
|
AMD B550 |
Geheugen |
|
---|---|
|
4x DDR4 |
|
128GB |
Compatible modules | ECC |
Opmerkingen geheugen |
up to 3200 MHz* * AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz |
Opslag |
|
---|---|
|
1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4 + SATA), 4x SATA-600 |
|
0, 1, 10 |
Uitbreidingsslots |
|
---|---|
|
1x PCI-e 4.0 x16 |
|
1x |
Opmerkingen uitbreidingsslots | Supports PCIe3.0 when using AMD Ryzen™ 5000, 4000 G-Series Desktop Processors with Radeon™ Graphics |
Netwerk |
|
---|---|
|
2x Ethernet 1Gbps, 1x Ethernet 10G/1G |
Netwerkcontroller | Intel X710-AT2 |
Tweede netwerkcontroller | Intel I210 |
Netwerkcontroller(s) | Intel I210, X710-AT2 |

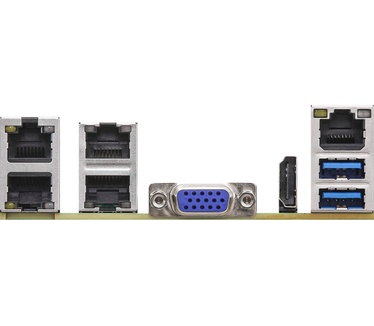

Aansluitingen |
|
---|---|
USB/TB intern (front) | 1x 19-pins USB 3.2 (G1, 5Gbit/s) header |
|
2x USB 3.2 (Gen1, 5Gb/s) type-A |
|
1x HDMI, 1x VGA (D-Sub) |
Totaal video-uitgangen | 2 |
Overige aansluitingen | 1x IPMI, 1x TPM header |
RGB |
|
---|---|
|
|
Garantie en bijzonderheden |
|
---|---|
Bijzonderheden | Deep mini-ITX, dus geen gewone mini-itx |
Meer informatie |
|
---|---|

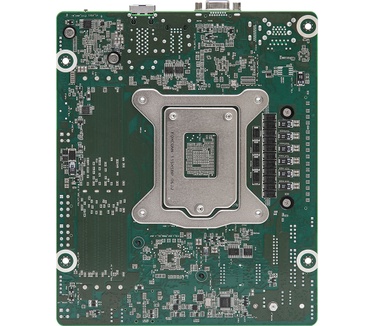

Product | ASRock Rack B550D4ID-2L2T |
Categorie | Moederborden |
Merk | ASRock Rack |
Tweakers ID | 2068978 |
EAN | 4710483935442 |
SKU | B550D4ID-2L2T |
Specs van de fabrikant | Productinformatie |
