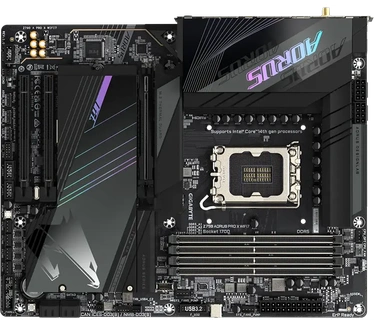

Gigabyte Z790 AORUS PRO X WIFI7

Populaire specificaties
Socket	1700
Moederbordchipset	Intel Z790
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet (RJ45)	1x Ethernet 5Gbps

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z790

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	192GB
Compatible modules	ECC (in non-ECC mode)

Opslag
Hardeschijf bus (intern)	4x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	5x
Raid-modi	0, 1, 5, 10

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Netwerk
Ethernet (RJ45)	1x Ethernet 5Gbps
Netwerkcontroller	Realtek (variant)
Netwerkcontroller(s)	Realtek (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Bluetooth 5.3
Wifi-controller	Intel Wi-Fi 7 BE200

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 2x Thunderbolt header, 1x USB-C 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
USB/TB extern	2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C
Video uit	1x HDMI
Totaal video-uitgangen	1
Video in (voor TB/USB-c)	1x DisplayPort
Hoogste HDMI versie	HDMI 2.0
Overige aansluitingen	1x TPM header
Opmerkingen aansluitingen	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

(Fan) headers
Headers (fan/water)	8x 4-pins (totaal)
(default) Fanconfiguratie	1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Onboard knoppen	Clear CMOS, Reset
Eigenschappen moederbord	BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC897

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	80A
Aantal VCore-powerstages	18x
Rating VCore-vrm	1.440A
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	Gigabyte Z790 AORUS PRO X WIFI7
Categorie	Moederborden
Merk	Gigabyte
Serie	AORUS
Tweakers ID	2035742
EAN	4719331860141
SKU	Z790 A PRO X WIFI7, Z790 AORUS PRO X WIFI7
Specs van de fabrikant	Productinformatie
