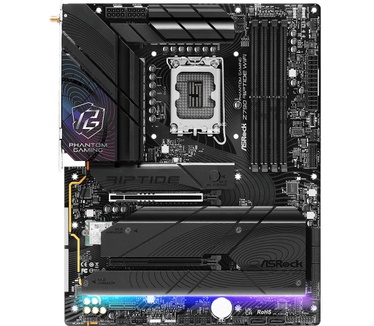

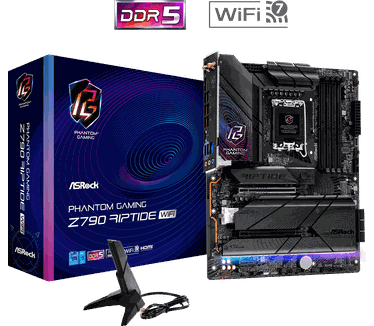

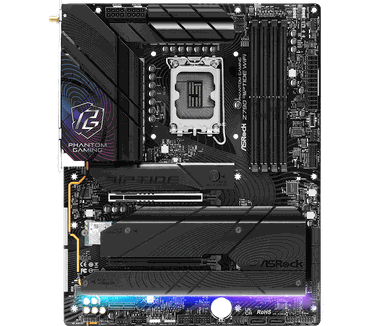

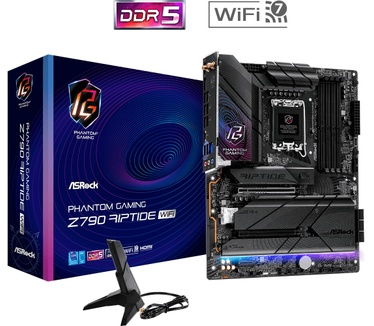

ASRock Z790 Riptide WIFI

Populaire specificaties
Socket	1700
Moederbordchipset	Intel Z790
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z790

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	192GB
Overklokprofielen	Intel XMP
Opmerkingen geheugen	1DPC 1R Up to 8000+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 3600 MHz Natively.

Opslag
Hardeschijf bus (intern)	4x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 8x SATA-600
Aantal gekoelde M.2 slots	5x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	CPU: - 1 x Blazing M.2 Socket (M.2_GEN5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 8 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks If M.2_GEN5 is occupied, PCIE1 will downgrade to x8 mode. - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 and RAID 10 for M.2 NVMe storage devices
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x M.2, 1x PCI-e 3.0 x1, 1x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 3.0 x1 Slot (PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire™ * Supports NVMe SSD as boot disks If M.2_GEN5 is occupied, PCIE1 will downgrade to x8 mode.

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Killer E3100G
Netwerkcontroller(s)	Killer E3100G

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Bluetooth 5.4

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt 4 header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header

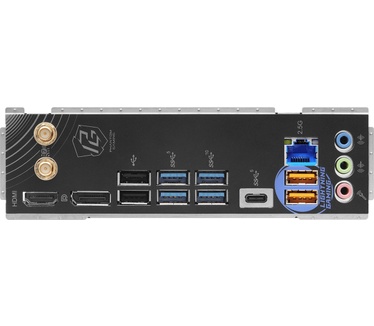

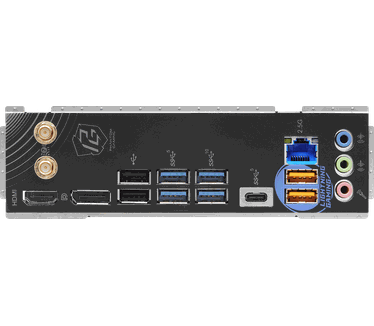

USB/TB extern	2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C
Video uit	1x DisplayPort, 1x Embedded DisplayPort, 1x HDMI
Totaal video-uitgangen	3
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Opmerkingen aansluitingen	- 1 x USB 3.2 Gen2x2 Type-C (Front) - 2 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Rear) - 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) USB32_56 are Lightning Gaming Ports.

(Fan) headers
Headers (fan/water)	7x 4-pins (totaal)
(default) Fanconfiguratie	- 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x Chassis Fan Connector (4-pin)***** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN5 supports the fan power up to 1A (12W). ****** CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire, Geïntegreerd I/O-shield

Audio
Audio kanalen	8 (7.1)
Audiochip	Realtek ALC1220

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	90A
Aantal VCore-powerstages	16x
Rating VCore-vrm	1.440A
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASRock Z790 Riptide WIFI
Categorie	Moederborden
Merk	ASRock
Tweakers ID	2004378
EAN	4710483944475
SKU	90-MXBMD0-A0UAYZ
