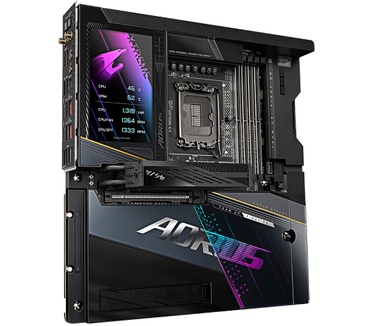

Gigabyte Z790 AORUS XTREME X

Populaire specificaties
Socket	1700
Moederbordchipset	Intel Z790
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 10G/5G/2.5G/1G/100M

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	Intel Z790

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	192GB
Compatible modules	ECC (in non-ECC mode)
Overklokprofielen	Intel XMP
Opmerkingen geheugen	Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	5x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps, 1x Ethernet 10G/5G/2.5G/1G/100M
Netwerkcontroller	Marvell AQtion AQN-107
Tweede netwerkcontroller	Intel (variant)
Netwerkcontroller(s)	AQN-107, Intel (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth	Bluetooth 5.3
Wifi-controller	Qualcomm Wi-Fi 7 QCNCM865

Aansluitingen
USB/TB intern (front)	1x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 2x USB-C 3.2 (G2x2, 20Gbit/s) header

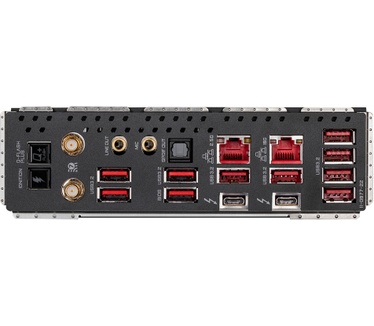

USB/TB extern	2x Thunderbolt 4 type-C, 10x USB 3.2 (Gen2, 10Gb/s) type-A
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x TPM header
Opmerkingen aansluitingen	1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable) 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)

(Fan) headers
Headers (fan/water)	9x 4-pins (totaal)
(default) Fanconfiguratie	1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan extension cable header (can extend three system fan headers through one cable) 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)

RGB
RGB-headers	3x 3-pins (ARGB), 3x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Onboard knoppen	Clear CMOS, Power, Reset
Eigenschappen moederbord	BIOS update zonder cpu (via USB)
Foutdiagnose	LCD/OLED-display

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	105A
Aantal VCore-powerstages	24x
Rating VCore-vrm	2.520A

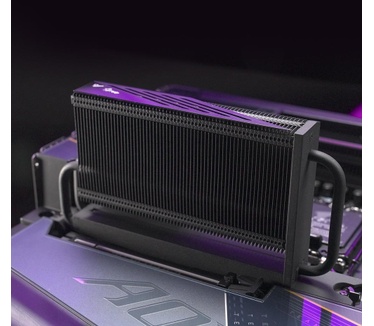

Vrm-koeling	Heatsink (passief)

Meer informatie
Product	Gigabyte Z790 AORUS XTREME X
Categorie	Moederborden
Merk	Gigabyte
Serie	AORUS
Tweakers ID	2000050
EAN	4719331857547
SKU	Z790 AORUS XTREME X
Specs van de fabrikant	Productinformatie
