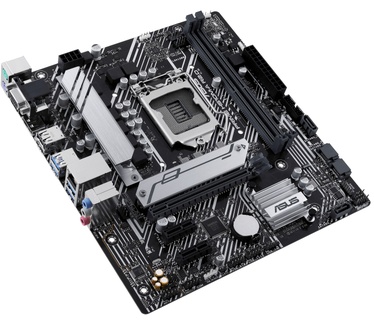

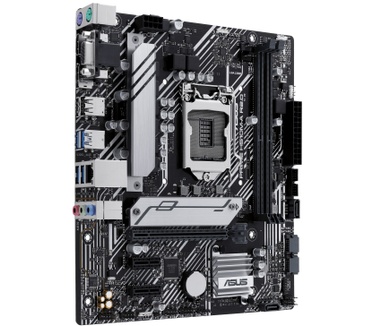

ASUS PRIME H510M-A R2.0

Populaire specificaties
Socket	1200
Moederbordchipset	Intel H470
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	2x DDR4
Ethernet (RJ45)	1x Ethernet 1Gbps
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 4.0 x16

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	Intel H470

Geheugen
Geheugentype (moederbord)	2x DDR4
Maximum grootte werkgeheugen	64GB
Opmerkingen geheugen	DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 4x SATA-600
Aantal gekoelde M.2 slots	1x
Opmerkingen opslag	Inte® H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
M.2 op CPU	NIET op CPU, WEL op chipset

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 4.0 x16
Totaal PCI-e x16	1x
Opmerkingen uitbreidingsslots	Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H470 Chipset 2 x PCIe 3.0 x1 slots

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps
Netwerkcontroller	Realtek (variant)
Netwerkcontroller(s)	Realtek (variant)

Aansluitingen
USB/TB intern (front)	3x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header
USB/TB extern	2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A
Video uit	1x DisplayPort, 1x HDMI, 1x VGA (D-Sub)
Totaal video-uitgangen	3
Hoogste HDMI versie	HDMI 2.0
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	2x PS/2, 1x TPM header
Opmerkingen aansluitingen	1 x USB 2.0 header support 1 additional USB 2.0 port

(Fan) headers
Headers (fan/water)	3x 4-pins (totaal)

RGB
RGB-headers	2x 3-pins (ARGB), 2x 4-pins (RGB)
LED verlichting

Overige eigenschappen
Foutdiagnose	Via leds behuizing

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Microfoon (ingang)
Audiochip	Realtek ALC887 / ALC897

Vrm
Vrm-koeling	Heatsink (passief), Nee

Meer informatie
Product	ASUS PRIME H510M-A R2.0
Categorie	Moederborden
Merk	ASUS
Tweakers ID	1957474
EAN	4711387234891
SKU	90MB1FP0-M0EAY0
Specs van de fabrikant	Productinformatie
