Populaire specificaties |
|
---|---|
|
1700 |
|
Intel Z790 |
|
ATX (Standard) |
|
4x DDR5 |
|
1x Ethernet 2.5Gbps |
|
1x M.2, 1x PCI-e 4.0 x16, 2x PCI-e 5.0 x16 |
Socket en CPU |
|
---|---|
|
1700 |
Form factor, bios en chipset |
|
---|---|
|
ATX (Standard) |
|
Intel Z790 |
Geheugen |
|
---|---|
|
4x DDR5 |
|
128GB |
|
Intel XMP |
Opmerkingen geheugen | Supports Dual Channel DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC) / 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 |
Opslag |
|
---|---|
|
1x M.2 (PCI-e 3.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 8x SATA-600 |
Aantal gekoelde M.2 slots | 5x |
|
0, 1, 5, 10 |
Opmerkingen opslag |
8 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology 1 x M.2 (M Key) Socket (M2M_CPU1): Supports M.2 Type 2280 SSD module Supports PCI-E 5.0 x4 (128Gb/s) - NVMe SSD 1 x M.2 (M Key) Socket (M2M_CPU2): Supports M.2 Type 2280/ 22110 SSD module Supports PCI-E 4.0 x4 (64Gb/s) - NVMe SSD 1 x M.2 (M Key) Socket (M2M_SB1): Supports M.2 Type 2280/ 22110 SSD module Supports PCI-E 4.0 x4 (64Gb/s) - NVMe SSD 1 x M.2 (M Key) Socket (M2M_SB2): Supports M.2 Type 2280 SSD module Supports PCI-E 4.0 x4 (64Gb/s) - NVMe SSD 1 x M.2 (M Key) Socket (M2M_SB3): Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA lll (6Gb/s)SSD * When using SATA SSD module on M.2 slot(M2M_SB3), the SATA_8 connector will be disabled. * When using PCI-E module on M.2 slot(M2M_CPU1), the PCI-E slot(PCIEx16_2) will be disabled. * When using PCI-E module on M.2 slot(M2M_CPU1), the PCI-E slot(PCIEx16_1) will become x8. |
M.2 op CPU | WEL op cpu |
Uitbreidingsslots |
|
---|---|
|
1x M.2, 1x PCI-e 4.0 x16, 2x PCI-e 5.0 x16 |
|
3x |
Opmerkingen uitbreidingsslots |
1 x PCIe 5.0 x16 Slot (x16 mode / x8 mode) 1 x PCIe 5.0 x16 Slot (x8 mode) 1 x PCIe 4.0 x16 Slot (x4 mode) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and IntelGEN2 CNVi |
Netwerk |
|
---|---|
|
1x Ethernet 2.5Gbps |
Netwerkcontroller | Intel I226-V |
Netwerkcontroller(s) | I226-V |
Aansluitingen |
|
---|---|
USB/TB intern (front) | 2x 9-pins USB 2.0 header, 2x USB-C 3.2 (G2, 10Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header |
|

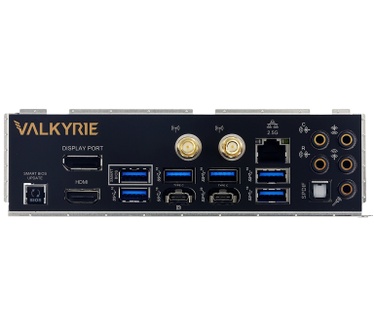

6x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C |
|
1x DisplayPort, 1x HDMI, 1x USB type-C |
Totaal video-uitgangen | 3 |
Hoogste HDMI versie | HDMI 2.1 |
Hoogste DisplayPort versie | DisplayPort 1.4 |
Overige aansluitingen | 1x Serieel (header), 1x TPM header |
(Fan) headers |
|
---|---|
Headers (fan/water) | 6x 4-pins (totaal) |
(default) Fanconfiguratie |
1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 4 x System Fan Connector |
RGB |
|
---|---|
RGB-headers | 2x 3-pins (ARGB), 1x 4-pins (RGB) |
|
|
Overige eigenschappen |
|
---|---|
Eigenschappen moederbord | BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield |
Foutdiagnose | HEX-display |
Audio |
|
---|---|
Audio kanalen | 8 (7.1) |
Audio-aansluitingen | 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang) |
Audiochip | Realtek ALC1220 |
Vrm |
|
---|---|
|
Powerstages |
|
105A |
|
Heatsink (passief) |
Meer informatie |
|
---|---|

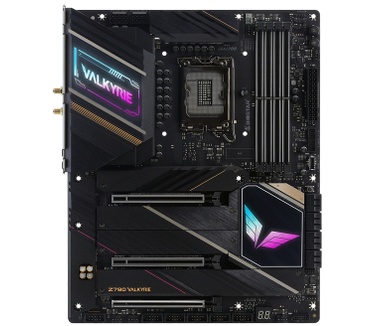

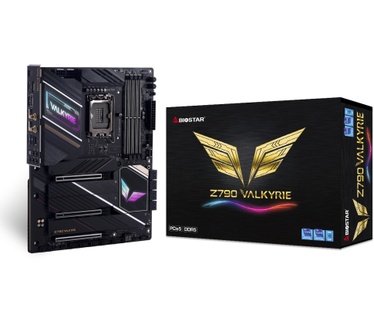

Product | Biostar Z790 VALKYRIE |
Categorie | Moederborden |
Merk | Biostar |
Tweakers ID | 1892946 |
EAN | 4712960687097 |
SKU | Z790 VALKYRIE |
Specs van de fabrikant | Productinformatie |
