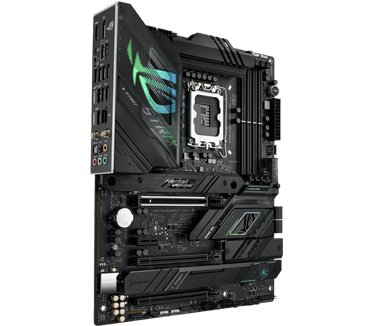

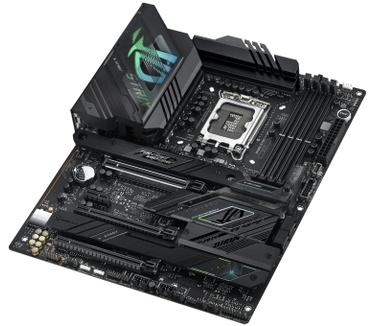

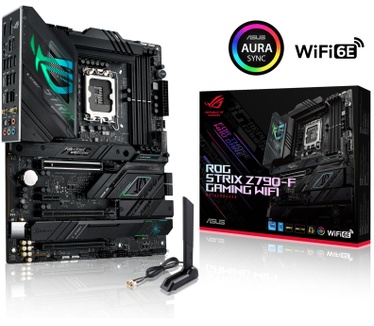

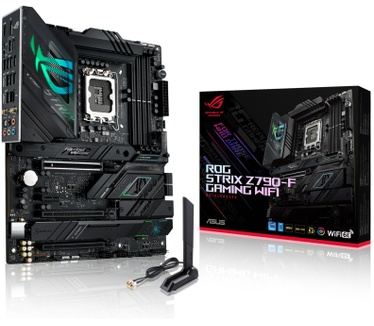

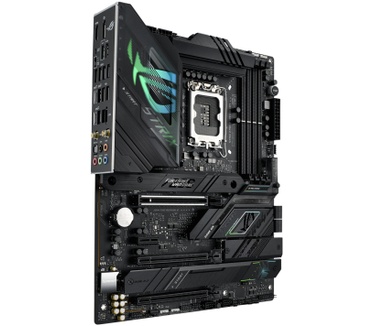

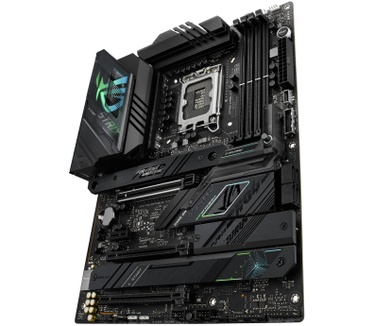

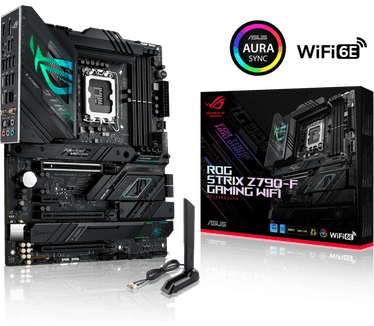

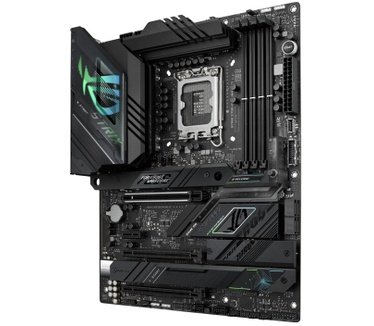

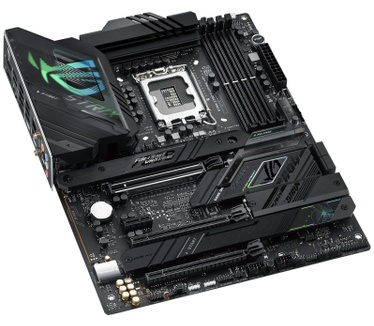

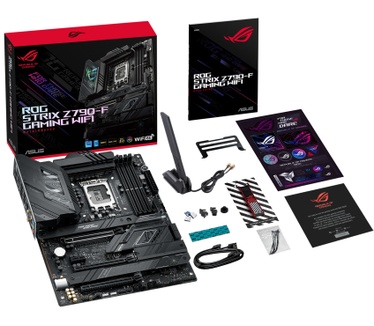

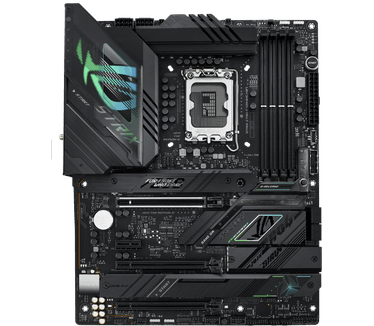

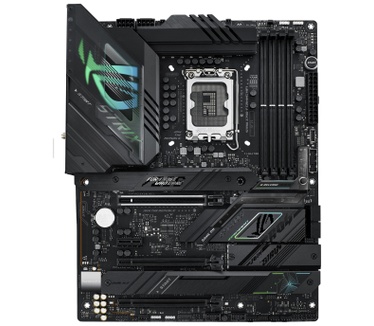

ASUS ROG Strix Z790-F GAMING WIFI

Populaire specificaties
Socket	1700
Moederbordchipset	Intel Z790
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z790

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	128GB
Overklokprofielen	Intel XMP
Opmerkingen geheugen	DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	4x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x1, 2x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Intel I225-V
Netwerkcontroller(s)	I225-V

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.3
Wifi-controller	Intel Wi-Fi 6E AX411

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x Thunderbolt header, 1x USB-C 3.2 (G2, 10Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
USB/TB extern	4x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4

(Fan) headers
Headers (fan/water)	8x 4-pins (totaal)
(default) Fanconfiguratie	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Onboard knoppen	Clear CMOS, Power
Eigenschappen moederbord	BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC4080

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	90A
Aantal VCore-powerstages	16x
Rating VCore-vrm	1.440A
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASUS ROG Strix Z790-F GAMING WIFI
Categorie	Moederborden
Merk	ASUS
Serie	ROG Strix
Tweakers ID	1876292
EAN	4711081938590
SKU	90MB1CP0-M0EAY0
Specs van de fabrikant	Productinformatie
