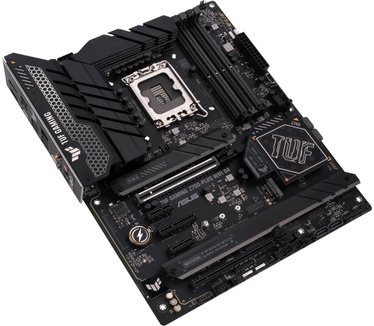

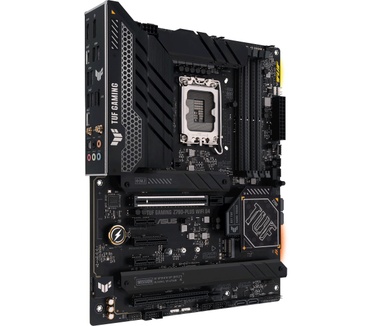

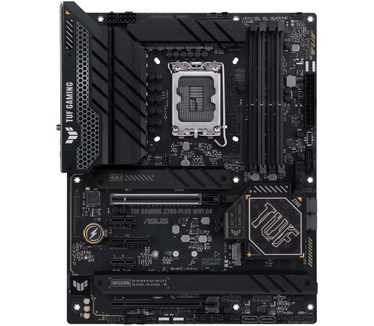

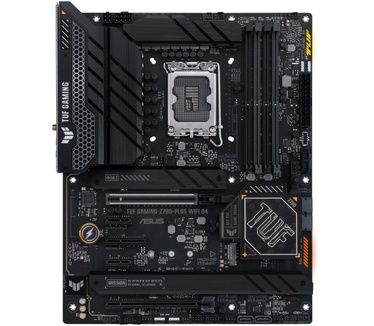

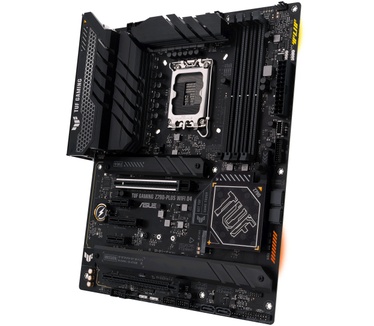

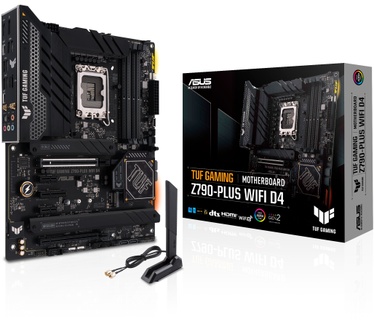

ASUS TUF Gaming Z790-PLUS WIFI D4

Populaire specificaties
Socket	1700
Moederbordchipset	Intel Z790
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z790

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Overklokprofielen	Intel XMP
Opmerkingen geheugen	DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	3x
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 4.0 x4, 1x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Intel I226-V
Netwerkcontroller(s)	I226-V

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.2

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt 4 header, 1x USB-C 3.2 (G2, 10Gbit/s) header
USB/TB extern	4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x Serieel (header)

(Fan) headers
Headers (fan/water)	7x 4-pins (totaal)
(default) Fanconfiguratie	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers

RGB
RGB-headers	3x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC S1220A

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	60A
Aantal VCore-powerstages	16x
Rating VCore-vrm	960A
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASUS TUF Gaming Z790-PLUS WIFI D4
Categorie	Moederborden
Merk	ASUS
Serie	TUF Gaming
Tweakers ID	1876226
EAN	4711081941088
SKU	90MB1CR0-M0EAY0, TUF GAMING Z790-PLUS WIFI D4
Specs van de fabrikant	Productinformatie
