Gigabyte B650 AORUS ELITE AX (rev 1.0)

Populaire specificaties
Socket	AM5
Moederbordchipset	AMD B650
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR5
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	AM5

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	AMD B650

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	128GB
Overklokprofielen	AMD EXPO, Intel XMP
Opmerkingen geheugen	Support for DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 4.0 x4), 1x M.2 (PCI-e 5.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	3x
Raid-modi	0, 1, 10
Opmerkingen opslag	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Realtek (variant)
Netwerkcontroller(s)	Realtek (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.2
Wifi-controller	AMD RZ616 (MT7922A22M)

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header

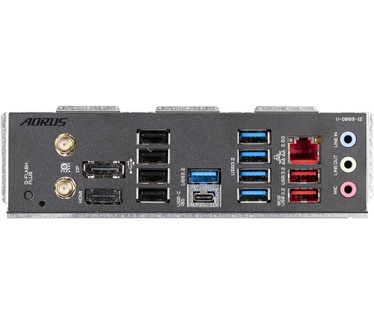

USB/TB extern	4x USB 2.0 type-A, 5x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x TPM header
Opmerkingen aansluitingen	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel

(Fan) headers
Headers (fan/water)	6x 4-pins (totaal)
(default) Fanconfiguratie	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header

RGB
RGB-headers	2x 3-pins (ARGB), 3x 4-pins (RGB)
Opmerkingen RGB headers	1 x CPU cooler LED strip/RGB LED strip header
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Onboard knoppen	Reset
Eigenschappen moederbord	BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Microfoon (ingang)
Audiochip	Realtek ALC897

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	70A
Aantal VCore-powerstages	14x
Rating VCore-vrm	980A
Vrm-koeling	Heatsink (passief)

Garantie en bijzonderheden
Fabrieksgarantie	3 jaar carry in

Meer informatie
Product	Gigabyte B650 AORUS ELITE AX
Categorie	Moederborden
Merk	Gigabyte
Serie	AORUS
Tweakers ID	1874230
EAN	4719331849375
SKU	B650 AORUS ELITE AX, B650 AORUS ELITE AX (rev. 1.0), B650 AORUS ELITE AX 1.0
Specs van de fabrikant	Productinformatie

Testrapport uit het Tweakers Testlab

Lees meer over hoe Tweakers producten test.

Testcondities
Processor	Ryzen 9 7950X
Geheugen	Kingston Fury Beast KF552C40BBK2-32
HDD / SSD	Gigabyte NVMe SSD 256GB
vBIOS	F3a
CCD1 Kloksnelheid	5146
CCD2 Kloksnelheid	4946
PPT Limit	230
TDC Limit	160
EDC Limit	225

Moederbord VRM Test - Fixed BIOS Settings
CCD1 Kloksnelheid - Load	5.146 MHz
CCD2 Kloksnelheid - Load	4.946 MHz
Systeemverbruik - Idle (gemiddelde 5 min.)	61 watt
CB 23 Multi - Gem. na 15 min.	37.431 punten
CB 23 Multi - Std. afwijking	246 punten
CB 23 Multi - Systeemverbruik - Max.	335 watt
CPU verbruik - 8-Pin EPS12V	239,0 watt
AIDA64 - CPU Temp. na 15 min.	95,0 °C
AIDA64 - CPU Vcore	1,260 volt
AIDA64 - CPU package power max.	192,0 watt
Max. VRM temp. na 15 min. - Moederbord sensor	40 °C
Max. VRM temp. na 15 min. - FLIR	42,0 °C
