ASUS Pro B660M-C-CSM

Populaire specificaties
Socket	1700
Moederbordchipset	Intel B660
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	4x DDR5
Ethernet (RJ45)	1x Ethernet 1Gbps
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 4.0 x16

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	Intel B660

Geheugen
Geheugentype (moederbord)	4x DDR5
Maximum grootte werkgeheugen	128GB
Opmerkingen geheugen	4 x DIMM, Max. 128GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Optimem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 4.0 x4), 4x SATA-600
Raid-modi	0, 1, 5, 10
Opmerkingen opslag	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 4.0 x16
Totaal PCI-e x16	1x
Opmerkingen uitbreidingsslots	Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps
Netwerkcontroller	Intel (variant)
Netwerkcontroller(s)	Intel (variant)

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G1, 5Gbit/s) header

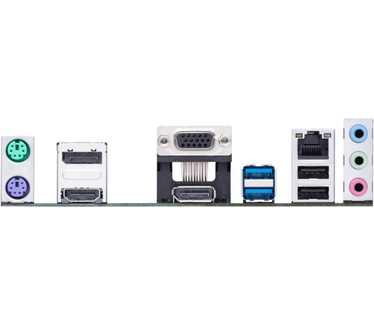

USB/TB extern	2x USB 2.0 type-A, 2x USB 3.2 (Gen1, 5Gb/s) type-A
Video uit	2x DisplayPort, 1x HDMI, 1x VGA (D-Sub)
Totaal video-uitgangen	4
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	2x PS/2, 2x Serieel (header)

(Fan) headers
Headers (fan/water)	3x 4-pins (totaal)
(default) Fanconfiguratie	1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers

RGB
LED verlichting

Overige eigenschappen
Foutdiagnose	Via leds behuizing

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Microfoon (ingang)
Audiochip	Realtek ALC897

Vrm
Type stroomvoorziening	Losse mosfets
Vrm-koeling
Vrm-opmerkingen	Controller: ASP2100 4C10C

Meer informatie
Product	ASUS Pro B660M-C-CSM
Categorie	Moederborden
Merk	ASUS
Tweakers ID	1817738
EAN	4711081714101
SKU	90MB1BW0-M0EAYC, Pro B660M-C-CSM
