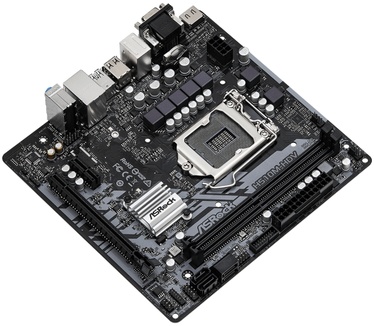

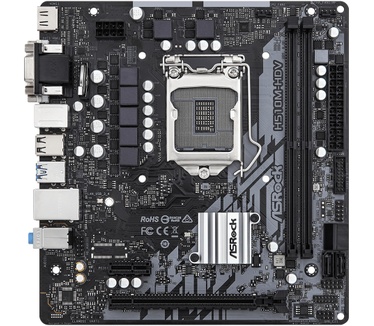

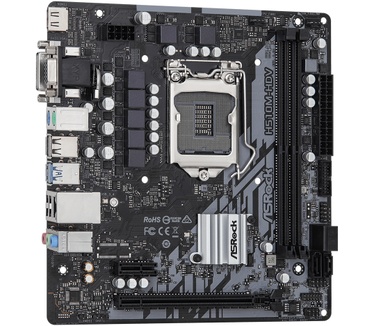

ASRock H510M-HDV R2.0

Populaire specificaties
Socket	1200
Moederbordchipset	Intel H510
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	2x DDR4
Ethernet (RJ45)	1x Ethernet 1Gbps
Uitbreidingsslots	1x PCI-e 3.0 x1, 1x PCI-e 4.0 x16

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	Intel H510

Geheugen
Geheugentype (moederbord)	2x DDR4
Maximum grootte werkgeheugen	64GB
Opmerkingen geheugen	- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively. 10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

Opslag
Hardeschijf bus (intern)	4x SATA-600
Opmerkingen opslag	- 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x1, 1x PCI-e 4.0 x16
Totaal PCI-e x16	1x
Opmerkingen uitbreidingsslots	11th Gen Intel® Core™ Processors - 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® Core™ Processors - 1 x PCI Express 3.0 x16 Slot* - 1 x PCI Express 3.0 x1 Slot *Supports NVMe SSD as boot disks

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps
Netwerkcontroller	Realtek RTL8111H
Netwerkcontroller(s)	Realtek RTL8111H

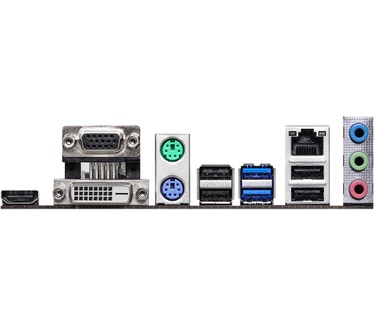

Aansluitingen
USB/TB intern (front)	1x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header
USB/TB extern	4x USB 2.0 type-A, 2x USB 3.2 (Gen1, 5Gb/s) type-A
Video uit	1x DVI-D, 1x HDMI, 1x VGA (D-Sub)
Totaal video-uitgangen	3
Overige aansluitingen	2x PS/2, 1x TPM header
Opmerkingen aansluitingen	- 1 x SPI TPM Header

(Fan) headers
Headers (fan/water)	2x 4-pins (totaal)
(default) Fanconfiguratie	- 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

RGB
LED verlichting

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang), 1x Microfoon (ingang)
Audiochip	Realtek ALC887 / ALC897

Vrm
Vrm-koeling

Meer informatie
Product	ASRock H510M-HDV R2.0
Categorie	Moederborden
Merk	ASRock
Tweakers ID	1792200
EAN	4710483935022
SKU	90-MXBGS0-A0UAYZ
Specs van de fabrikant	Productinformatie
