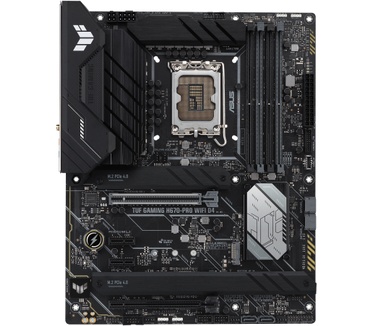

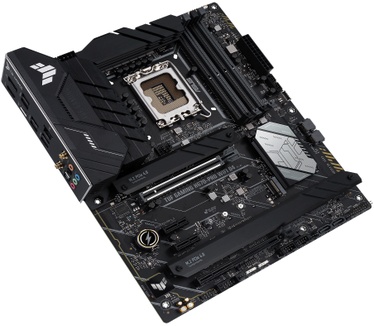

ASUS TUF Gaming H670-Pro WiFi D4

Populaire specificaties
Socket	1700
Moederbordchipset	Intel H670
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	1700

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel H670

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Opmerkingen geheugen	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 4x SATA-600
Aantal gekoelde M.2 slots	3x
Raid-modi	0, 1, 5, 10

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 5.0 x16
Totaal PCI-e x16	2x

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Intel (variant)
Netwerkcontroller(s)	Intel (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.2

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt header, 1x USB-C 3.2 (G2, 10Gbit/s) header
USB/TB extern	4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.1
Hoogste DisplayPort versie	DisplayPort 1.4

(Fan) headers
Headers (fan/water)	7x 4-pins (totaal)

RGB
RGB-headers	2x 3-pins (ARGB), 1x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	Geïntegreerd I/O-shield
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC887 / ALC897

Vrm
Type stroomvoorziening	Powerstages
VCore-powerstages	50A
Aantal VCore-powerstages	14x
Rating VCore-vrm	700A
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASUS TUF Gaming H670-Pro WiFi D4
Categorie	Moederborden
Merk	ASUS
Serie	TUF Gaming
Tweakers ID	1783104
EAN	4711081515524
SKU	90MB1900-M0EAY0, 90MB1900-M1EAY0
Specs van de fabrikant	Productinformatie
