Er zijn geen actuele prijzen bekend van dit product. De laatst bekende laagste prijs was € 325,61 op 6 november 2023.
Specificaties
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel Z590 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Belangrijkste specificaties
-
Socket
1200 -
Moederbordchipset
Intel Z590 -
Form Factor
ATX (Standard) -
Geheugentype (moederbord)
4x DDR4 -
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) -
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Verkrijgbaar sinds: 31 augustus 2021
Alles openen
Socket en CPU
-
Socket
1200
Form factor, bios en chipset
-
Form Factor
ATX (Standard) -
Moederbordchipset
Intel Z590
Geheugen
-
Geheugentype (moederbord)
4x DDR4
Opslag
-
Hardeschijf bus (intern)
2x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 6x SATA-600
Uitbreidingsslots
-
Uitbreidingsslots
2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16 -
Totaal PCI-e x16
2x -
Opmerkingen uitbreidingsslots
1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
- Intel® 11th processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16
Intel® Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
* Supports PCIe bandwidth bifurcation for RAID on CPU function.
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)****
6 x SATA 6Gb/s ports
* Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
**** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled
Netwerk
-
Ethernet (RJ45)
1x Ethernet 2.5Gbps
Wifi en bluetooth
-
Verbinding (wlan)
Wi-Fi 1 (802.11a), Wi-Fi 2 (802.11b), Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

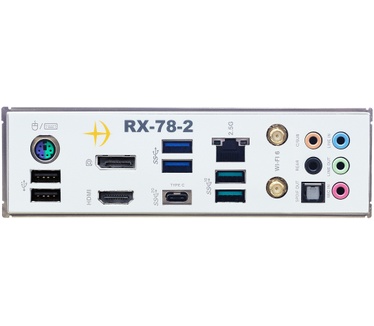

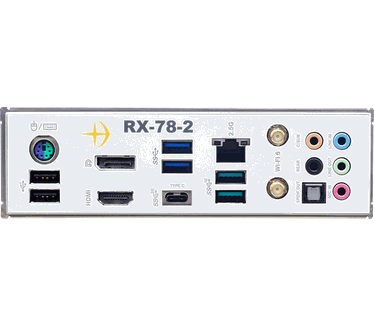

Aansluitingen
-
Video uit
1x DisplayPort, 1x HDMI - Totaal video-uitgangen 2
- Hoogste HDMI versie HDMI 2.0
- Hoogste DisplayPort versie DisplayPort 1.4
- Overige aansluitingen 1x PS/2
(Fan) headers
- Headers (fan/water) 4x 4-pins (totaal)
RGB
-
LED verlichting
Audio
- Audio-aansluitingen 5x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
- Audiochip Realtek ALC S1200A
Meer informatie

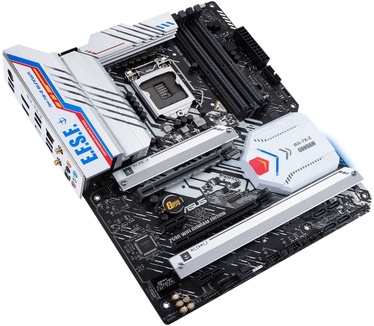

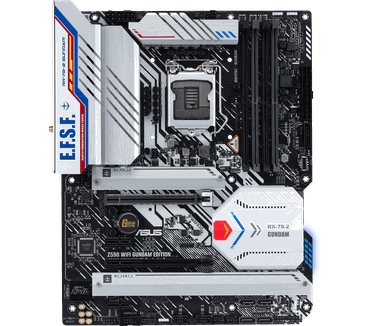

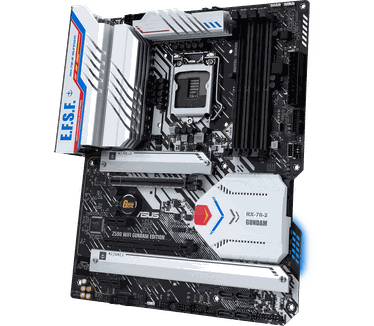

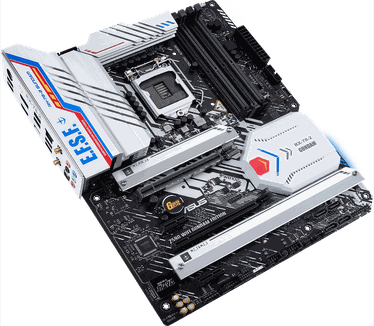

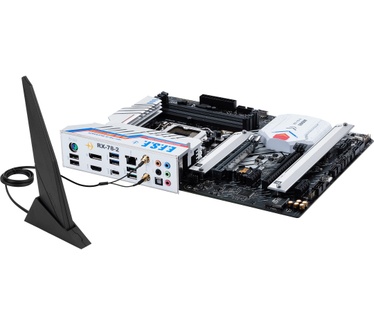

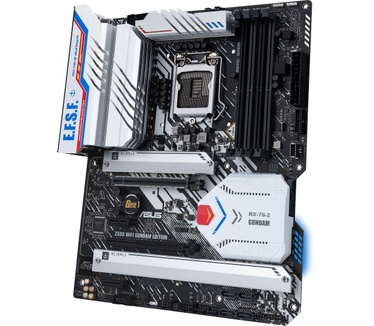

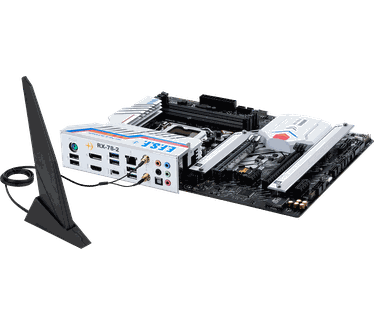

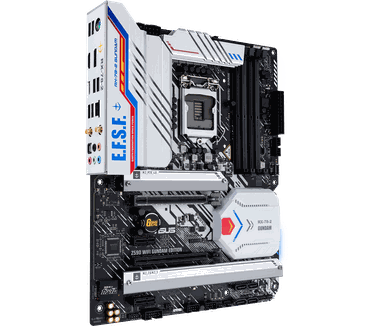

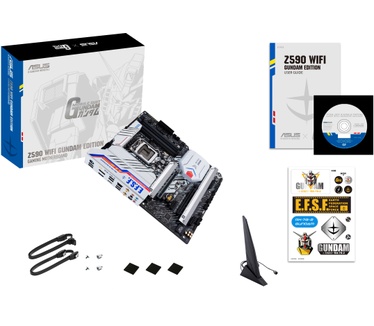

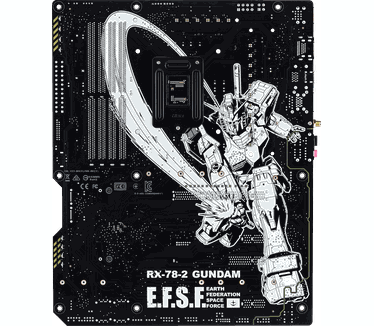

- Product ASUS Z590 WIFI GUNDAM EDITION
- Categorie Moederborden
- Merk ASUS
- Tweakers ID 1737216
- EAN 4711081185666
- SKU 90MB1830-M0EAY0
- Specs van de fabrikant Productinformatie
