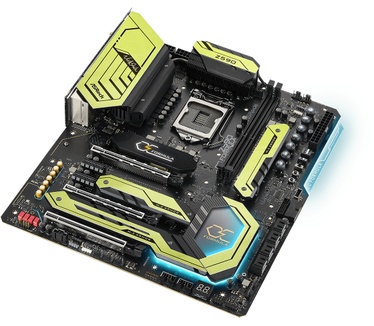

ASRock Z590 OC Formula

Belangrijkste specificaties
Socket	1200
Moederbordchipset	Intel Z590
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	2x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	Intel Z590

Geheugen
Geheugentype (moederbord)	2x DDR4
Maximum grootte werkgeheugen	64GB
Compatible modules	ECC

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 8x SATA-600
Raid-modi	0, 1, 5, 10

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 2.0 x1, 3x PCI-e 4.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	11th Gen Intel® Core™ Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE4/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE4); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE4) / Gen3x4 (PCIE5))* 10th Gen Intel® Core™ Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE4/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE4); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE4) / Gen3x4 (PCIE5))* - 2 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks - 6 x SATA3 6.0 Gb/s Connectors* - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061* - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel® Core™ Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel® Core™ Processors)** - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. M2_3, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled. **Supports Intel® Optane™ Technology M2_1 supports Intel® Optane™ Technology only with 10th Gen Intel® Core™ Processors Supports NVMe SSD as boot disks Supports ASRock U.2 Kit

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps, 1x Ethernet 2.5Gbps
Netwerkcontroller	Intel I225-V
Netwerkcontroller(s)	I225-V

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.2

Aansluitingen
Overige aansluitingen	2x PS/2

(Fan) headers
Headers (fan/water)	8x 4-pins (totaal)

RGB
LED verlichting

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	5x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC1220

Meer informatie
Product	ASRock Z590 OC Formula
Categorie	Moederborden
Merk	ASRock
Tweakers ID	1725814
EAN	4710483934827
SKU	90-MXBFS0-A0UAYZ
Specs van de fabrikant	Productinformatie
