Specificaties en productafbeeldingen

Verkrijgbaar sinds: 8 juni 2021

Populaire specificaties

Socket AM4
Moederbordchipset AMD B550
Form Factor Micro-ATX (µATX)
Geheugentype (moederbord) 4x DDR4
Ethernet (RJ45) 1x Ethernet 2.5Gbps
Uitbreidingsslots 1x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16

Socket en CPU

Socket AM4

Form factor, bios en chipset

Form Factor Micro-ATX (µATX)
Moederbordchipset AMD B550

Geheugen

Geheugentype (moederbord) 4x DDR4
Maximum grootte werkgeheugen 128GB

Opslag

Hardeschijf bus (intern) 1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4 + SATA), 6x SATA-600

Uitbreidingsslots

Uitbreidingsslots 1x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Totaal PCI-e x16 2x
Opmerkingen uitbreidingsslots 1 x PCIe 4.0/ 3.0 x16 Slot (PCIEG4X16):
Supports PCIe 3.0 x 16/ 4.0 x16 mode with AMD Ryzen™ processors.
Supports PCIe 3.0 x 16 mode AMD Ryzen™ with Radeon Vega Graphics processors.
1 x PCIe 3.0 x16 Slot (PCIEG3X4): Supports x 4 mode
1 x PCIe 3.0 x1 Slot
* According to different CPUs will have different speeds.
* PCIe 4.0 speed only for AMD Ryzen™ 3rd Gen Matisse and 4th Gen Vermeer CPUs.
* When using PCIe x1 slot (PCIEG3X1), PCIe x16 slot (PCIEG3X4) will be adjusted to x1 mode.

Total supports 2x M.2 socket and 6 x SATA III (6Gb/s) ports
6x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCI-E 4.0 x4 (64Gb/s)/ 3.0 x4 (32Gb/s) - NVMe/ AHCI & SATA III (6.0Gb/s) SSD
1x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI & SATA III (6.0Gb/s) SSD
* M.2 (M Key) Socket (M2_PCIEG4_64G_SATA) : The bandwidth is depended on CPU. Supports PCI-E 4.0 x4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse and 4th Gen Vermeer CPUs.
* When M.2 (M2_PCIEG3_32G_SATA) slot is occupied by SATA mode, the SATA_5 connector will be disabled.
* When M.2 (M2_PCIEG3_32G_SATA) slot is occupied by PCI-E mode, the SATA_5/ SATA_6 connector will be disabled.

Netwerk

Ethernet (RJ45) 1x Ethernet 2.5Gbps
Netwerkcontroller Realtek RTL8125B
Netwerkcontroller(s) Realtek RTL8125B

Aansluitingen

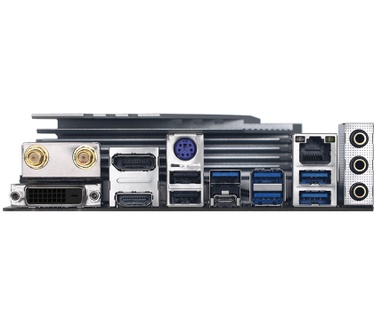

Video uit 1x DisplayPort, 1x DVI-D, 1x HDMI
Totaal video-uitgangen 3
Overige aansluitingen 1x PS/2

(Fan) headers

Headers (fan/water) 3x 4-pins (totaal)

RGB

LED verlichting

Overige eigenschappen

Foutdiagnose Diagnose-leds

Audio

Audio kanalen 8 (7.1)
Audio-aansluitingen 2x Analoog (uitgang)
Audiochip Realtek ALC1150

Meer informatie

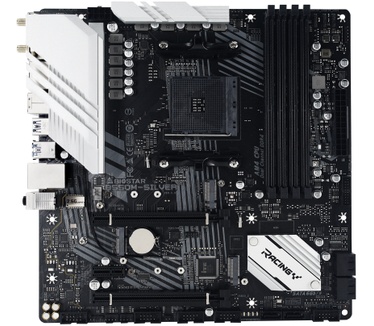

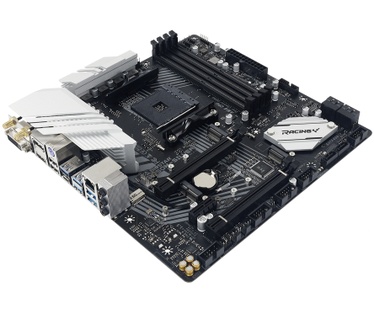

Product Biostar B550M-SILVER
Categorie Moederborden
Merk Biostar
Tweakers ID 1711934
EAN 4712960684829
SKU B550-SILVER, B550M-SILVER
Specs van de fabrikant Productinformatie
