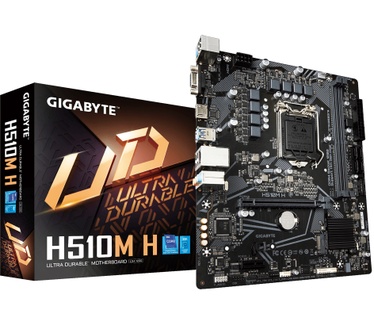

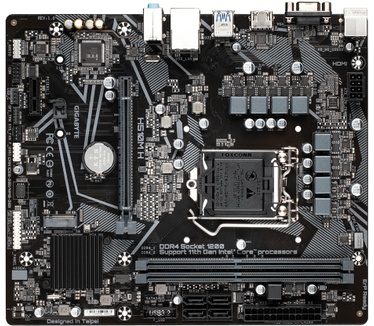

Gigabyte H510M H

Populaire specificaties
Socket	1200
Moederbordchipset	Intel H510
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	2x DDR4
Ethernet (RJ45)	1x Ethernet 1Gbps
Uitbreidingsslots	1x PCI-e 3.0 x1, 1x PCI-e 4.0 x16

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	Intel H510

Geheugen
Geheugentype (moederbord)	2x DDR4
Maximum grootte werkgeheugen	64GB
Compatible modules	ECC (in non-ECC mode)

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 4x SATA-600

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x1, 1x PCI-e 4.0 x16
Totaal PCI-e x16	1x
Opmerkingen uitbreidingsslots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 1 x PCI Express x1 slot (PCIEX1_1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps
Netwerkcontroller	Realtek (variant)
Netwerkcontroller(s)	Realtek (variant)

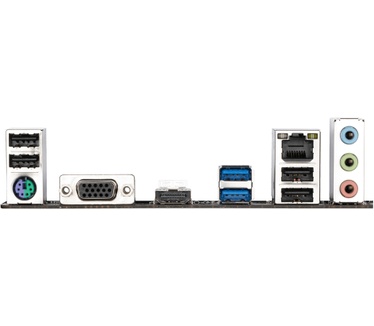

Aansluitingen
Video uit	1x HDMI, 1x VGA (D-Sub)
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 1.4
Overige aansluitingen	1x PS/2, 1x TPM header

(Fan) headers
Headers (fan/water)	2x 4-pins (totaal)

RGB
LED verlichting

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang)

Meer informatie
Product	Gigabyte H510M H
Categorie	Moederborden
Merk	Gigabyte
Tweakers ID	1700614
EAN	4719331817428
SKU	H510M H, H510M-H
Specs van de fabrikant	Productinformatie
