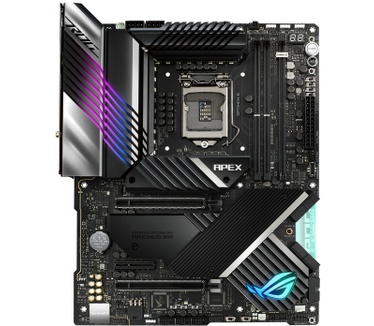

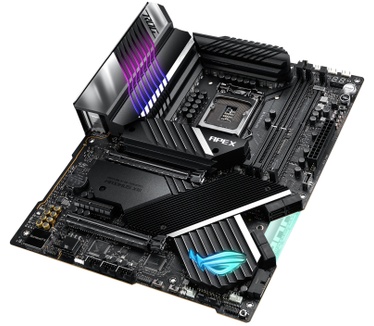

ASUS ROG Maximus XIII Apex

Populaire specificaties
Socket	1200
Moederbordchipset	Intel Z590
Form Factor	ATX (Standard)
Geheugentype (moederbord)	2x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z590

Geheugen
Geheugentype (moederbord)	2x DDR4
Maximum grootte werkgeheugen	64GB

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 3.0 x4 + SATA), 2x M.2 (PCI-e 4.0 x4), 8x SATA-600

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x4, 2x PCI-e 4.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel®11th &10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280* - Intel® 11th processors supports PCIe 4.0 x4 mode - Intel® 10th processors supports PCIe 3.0 x4 mode Intel® Z590 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) 8 x SATA 6Gb/s ports*** RAID function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * M.2_2 slot shares bandwidth with PCIEX16_1 and PCIEX16_2. When M.2_2 runs x4 mode, PCIEX16_1 will run x8 mode and PCIEX16_2 will run x4 mode. ** When DIMM.2_1 is operating in SATA mode, SATA6G_2 will be disabled. *** SATA6G_56 shares bandwidth with PCIEX4 slot. When SATA6G_56 is populated, PCIEX4 slot will run x2 mode and SATA6G_56 will be disabled when PCIEX4 slot runs x4 mode. Intel® 11th &10th Gen Processors* 2 x PCIe 4.0/3.0 x16 slots** - Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 modes - Intel® 10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 modes Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot*** * Supports PCIe bandwidth bifurcation for RAID on CPU function. ** PCIEX16_1 and PCIEX16_2 share bandwidth with M.2_2. PCIEX16_1 will run x8 mode and PCIEX16_2 will run x4 mode when M.2_2 runs x4 mode. *** PCIEX4 slot shares bandwidth with SATA6G_56. PCIEX4 slot will run x2 mode when SATA6G_56 is populated.

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Intel I225-V
Netwerkcontroller(s)	I225-V

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.2
Wifi-controller	Intel Wi-Fi 6E AX210

Aansluitingen
Overige aansluitingen	2x PS/2

(Fan) headers
Headers (fan/water)	7x 4-pins (totaal)

RGB
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	Nvidia NVLink (SLI)

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC4080

Meer informatie
Product	ASUS ROG Maximus XIII Apex
Categorie	Moederborden
Merk	ASUS
Serie	ROG
Tweakers ID	1690496
EAN	4711081145431
SKU	90MB16E0-M0EAY0, ROG MAXIMUS XIII APEX
Specs van de fabrikant	Productinformatie
