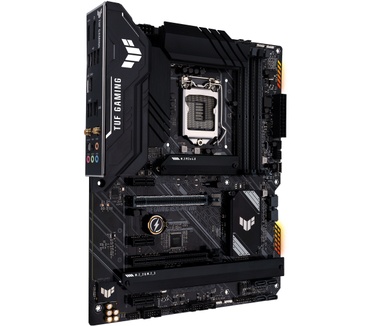

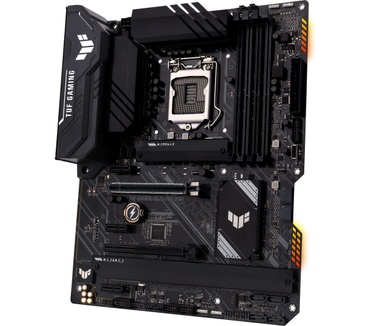

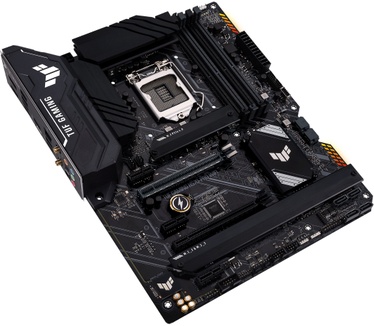

ASUS TUF Gaming H570-PRO WIFI

Populaire specificaties
Socket	1200
Moederbordchipset	Intel H570
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel H570

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 3.0 x4), 1x M.2 (PCI-e 4.0 x4), 6x SATA-600

Uitbreidingsslots
Uitbreidingsslots	3x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® H570 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 6 x SATA 6Gb/s ports * Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. *** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* - Intel® 11th processors support PCIe 4.0 x16 - Intel® 10th processors support PCIe 3.0 x16 Intel® H570 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 3 x PCIe 3.0 x1 slots * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Realtek (variant)
Netwerkcontroller(s)	Realtek (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0

Aansluitingen
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.0
Hoogste DisplayPort versie	DisplayPort 1.4

(Fan) headers
Headers (fan/water)	5x 4-pins (totaal)

RGB
LED verlichting

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC S1200A

Meer informatie
Product	ASUS TUF Gaming H570-PRO WIFI
Categorie	Moederborden
Merk	ASUS
Serie	TUF Gaming
Tweakers ID	1667632
EAN	4711081130581
SKU	90MB16L0-M0EAY0, TUF GAMING H570-PRO WIFI
Specs van de fabrikant	Productinformatie
