Populaire specificaties |
|
---|---|
|
1200 |
|
Intel B560 |
|
Mini-ITX |
|
2x DDR4 |
|
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|
1x Ethernet 2.5Gbps |
Socket en CPU |
|
---|---|
|
1200 |
Form factor, bios en chipset |
|
---|---|
|
Mini-ITX |
|
Intel B560 |
Geheugen |
|
---|---|
|
2x DDR4 |
|
64GB |
Opmerkingen geheugen |
5333(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
Opslag |
|
---|---|
|
1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 4x SATA-600 |
Aantal gekoelde M.2 slots | 2x |
Opmerkingen opslag |
Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. |
M.2 op CPU | WEL op cpu |
Uitbreidingsslots |
|
---|---|
|
1x PCI-e 4.0 x16 |
|
1x |
Opmerkingen uitbreidingsslots |
Intel® 11th &10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot(s)** - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 |
Netwerk |
|
---|---|
|
1x Ethernet 2.5Gbps |
Netwerkcontroller | Realtek (variant) |
Netwerkcontroller(s) | Realtek (variant) |
Wifi en bluetooth |
|
---|---|
|
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|
Bluetooth 5.0 |
Wifi-controller | Intel Wi-Fi 6 AX201 |
Aansluitingen |
|
---|---|
USB/TB intern (front) | 1x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 2x USB-C 3.2 (G2, 10Gbit/s) header |
|
5x USB 2.0 type-A, 1x USB 2.0 type-C, 1x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C |
|
1x DisplayPort, 1x HDMI |
Totaal video-uitgangen | 2 |
Hoogste HDMI versie | HDMI 2.0 |
Hoogste DisplayPort versie | DisplayPort 1.4 |
Opmerkingen aansluitingen | USB 2.0 type-c is voor audio |
(Fan) headers |
|
---|---|
Headers (fan/water) | 3x 4-pins (totaal) |
(default) Fanconfiguratie |
1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) |
RGB |
|
---|---|
RGB-headers | 1x 3-pins (ARGB), 1x 4-pins (RGB) |
|
|
Overige eigenschappen |
|
---|---|
Eigenschappen moederbord | BIOS update zonder cpu (via USB) |
Foutdiagnose | Diagnose-leds |
Audio |
|
---|---|
Audio kanalen | 8 (7.1) |
Audio-aansluitingen | 4x Analoog (uitgang), 1x Microfoon (ingang) |
Audiochip | Realtek ALC S1220A |
Vrm |
|
---|---|
|
Losse mosfets |
|
Heatsink (passief) |
Vrm-opmerkingen | Controller: ASP1900B |
Garantie en bijzonderheden |
|
---|---|
Fabrieksgarantie | 3 jaar carry in |
Meer informatie |
|
---|---|

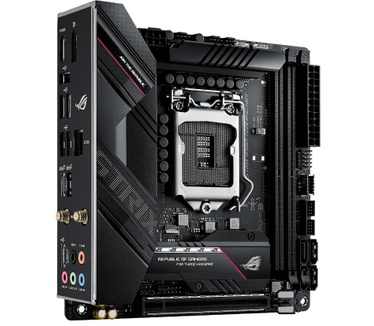

Product | ASUS ROG Strix B560-I Gaming WIFI |
Categorie | Moederborden |
Merk | ASUS |
Serie | ROG Strix |
Tweakers ID | 1662616 |
EAN | 4711081123224 |
SKU | 90MB16Y0-M0EAY0, ROG STRIX B560-I GAMING WIFI |
Specs van de fabrikant | Productinformatie |
