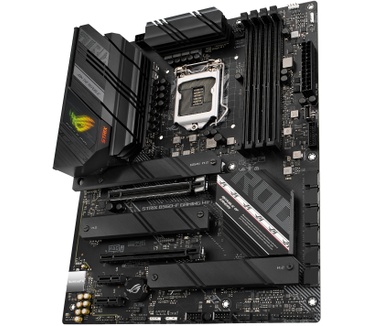

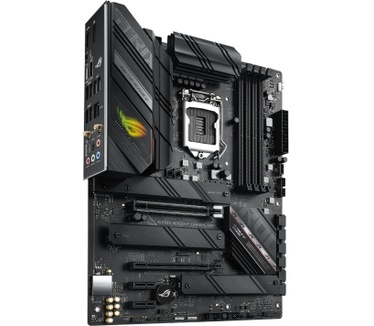

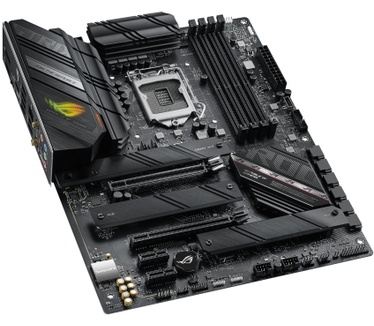

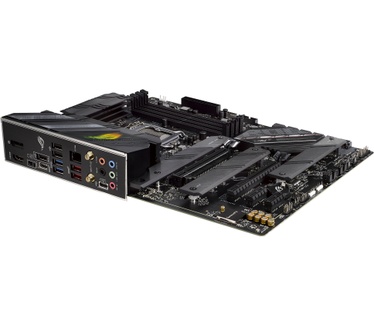

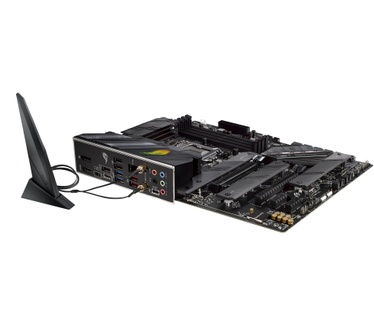

ASUS ROG Strix B560-F Gaming WIFI

Populaire specificaties
Socket	1200
Moederbordchipset	Intel B560
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel B560

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 3.0 x4), 1x M.2 (PCI-e 4.0 x4)

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel® 11th processors support PCIe 4.0 x16 mode - Intel®10th processors support PCIe 3.0 x16 mode Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots * The PCIEX16_2 shares bandwidth with the M.2_2. When M.2_2 runs x4 mode, PCIEX16_2 will be disabled. Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)** 6 x SATA 6Gb/s ports * The M.2_2 share bandwidth with PCIEX16_2. When PCIEX16_2 runs x4 mode, M.2_2 can’t run PCIE mode (when M.2_2 runs at SATA mode, SATA6G_1 will be disabled) ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Intel (variant)
Netwerkcontroller(s)	Intel (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wifi-controller	Intel Wi-Fi 6 AX200

Aansluitingen
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.0
Hoogste DisplayPort versie	DisplayPort 1.4

RGB
LED verlichting

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang)
Audiochip	Realtek ALC S1220A

Meer informatie
Product	ASUS ROG Strix B560-F Gaming WIFI
Categorie	Moederborden
Merk	ASUS
Serie	ROG Strix
Tweakers ID	1662414
EAN	4711081109679
SKU	90MB16J0-M0EAY0, 90MB16J0-M0EAY1, ROG STRIX B560-F GAMING WIFI
Specs van de fabrikant	Productinformatie
