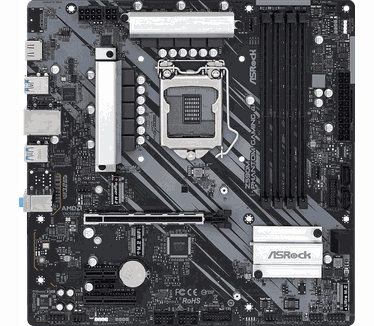

Name: ASRock Z590M Phantom Gaming 4
Brand: ASRock

Specificaties en productafbeeldingen

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	Intel Z590

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 4x SATA-600
Raid-modi	0, 1, 5, 10

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x1, 1x PCI-e 3.0 x4, 1x PCI-e 4.0 x16
Totaal PCI-e x16	1x
Opmerkingen uitbreidingsslots	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 18), NCQ, AHCI and Hot Plug* - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel® Core™ Processors) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. Supports Intel® Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit 11th Gen Intel® Core™ Processors - 1 x PCI Express 4.0 x16 Slot (PCIE1 10th Gen Intel® Core™ Processors - 1 x PCI Express 3.0 x16 Slot (PCIE1)* - 1 x PCI Express 3.0 x4 Slot - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) *Supports NVMe SSD as boot disks

(Fan) headers
Headers (fan/water)	6x 4-pins (totaal)

RGB
LED verlichting

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire

Verbeter productgegevens

ASRock Z590M Phantom Gaming 4
