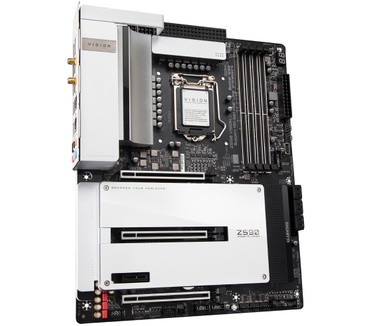

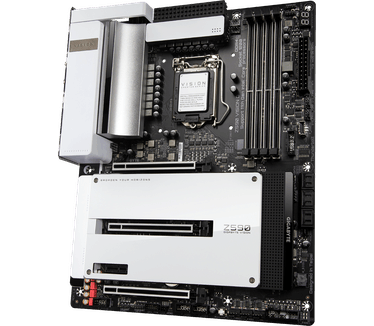

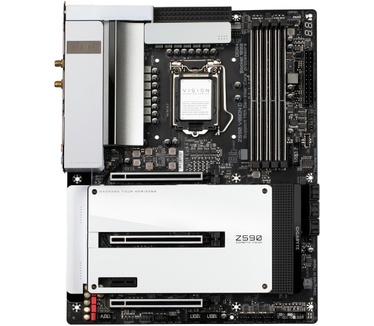

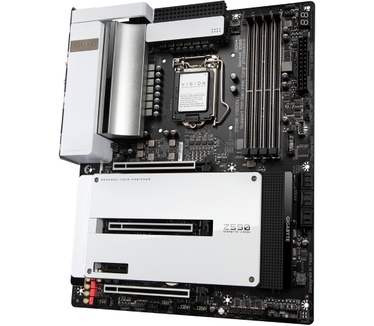

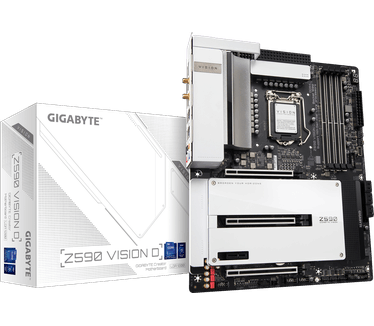

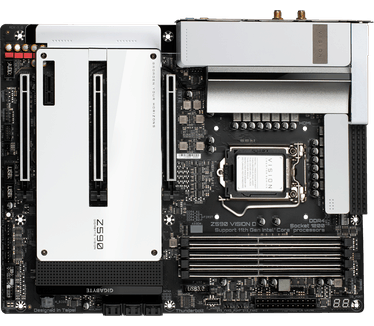

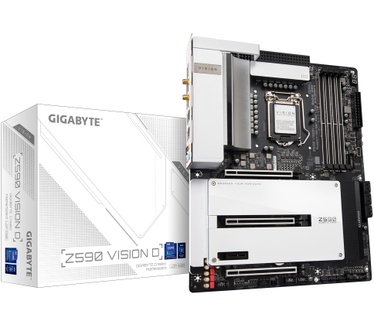

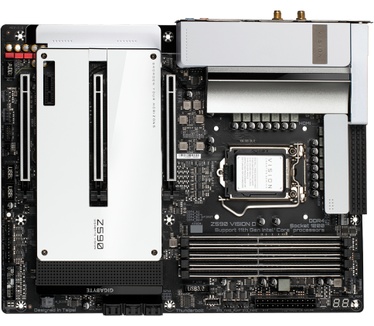

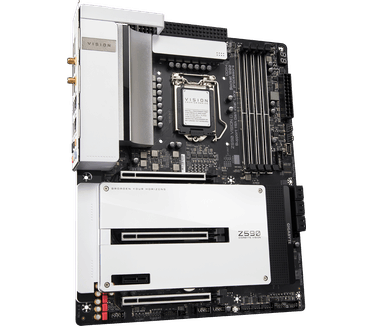

Gigabyte Z590 Vision D

Populaire specificaties
Socket	1200
Moederbordchipset	Intel Z590
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	2x Ethernet 2.5Gbps

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z590

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 3.0 x4), 1x M.2 (PCI-e 4.0 x4), 6x SATA-600
Raid-modi	0, 1, 5, 10

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 2x PCI-e 4.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	Expansion Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)* * Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector. 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard.) Storage interface: CPU: 1 x M.2 connector (Socket 3, M key, type 2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors. Intel® Optane™ Memory Ready

Netwerk
Ethernet (RJ45)	2x Ethernet 2.5Gbps
Netwerkcontroller	Intel (variant)
Tweede netwerkcontroller	Intel (variant)
Netwerkcontroller(s)	Intel (variant)

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.1
Wifi-controller	Intel Wi-Fi 6 AX200

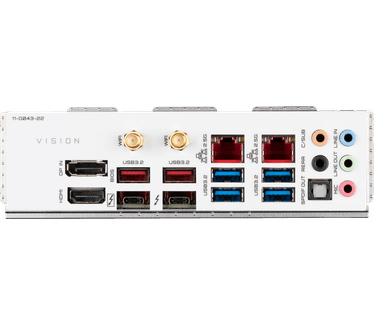

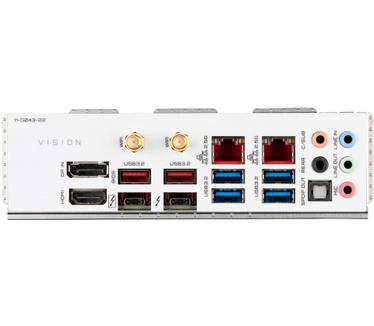

Aansluitingen
USB/TB extern	2x Thunderbolt 4 type-C
Video uit	1x HDMI, 2x Thunderbolt 4
Totaal video-uitgangen	3
Video in (voor TB/USB-c)	1x DisplayPort
Hoogste HDMI versie	HDMI 1.4
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x TPM header

(Fan) headers
Headers (fan/water)	7x 4-pins (totaal)

RGB
LED verlichting

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	5x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC4080

Garantie en bijzonderheden

Bijzonderheden

1x VisionLINK TB Connector (Thunderbolt™ 4/USB Type-C® Port) The connector supports GIGABYTE's VisionLINK technology. It is based on the Thunderbolt™ 4 specification and has display and data transmission capabilities with 20V@3A (60W) of power delivery. You can connect a drawing tablet or a standard DisplayPort/Thunderbolt™ monitor to this connector with an adapter. The VisionLINK TB connector supports a resolution of up to 4K@60 Hz when a graphics card is connected to the DisplayPort In port for the VisionLINK TB connector to output (the actual resolutions supported are dependent on the monitor being used.) Also, the connector is reversible and supports the USB 3.2 Gen 2 specification and is compatible to the USB 3.2 Gen 1 and USB 2.0 specification. You can use this port for USB devices, too. [hr] 1x Thunderbolt™ 4 Connector (USB Type-C® Port) The connector supports standard DisplayPort and Thunderbolt™ video outputs. You can connect a standard DisplayPort/Thunderbolt™ monitor to this connector with an adapter. The Thunderbolt™ connector can daisy chain up to five Thunderbolt™ devices. Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. You can adjust the Thunderbolt™ settings under Settings\Thunderbolt Configuration in BIOS Setup. The maximum supported resolution is 5120 x 2880@60 Hz with 24 bpp via single display output, but the actual resolutions supported are dependent on the monitor being used. Also, the connector is reversible and supports the USB 3.2 Gen 2 specification and is compatible to the USB 3.2 Gen 1 and USB 2.0 specification. You can use this port for USB devices, too.

Meer informatie
Product	Gigabyte Z590 Vision D
Categorie	Moederborden
Merk	Gigabyte
Tweakers ID	1659424
EAN	4719331817459
SKU	Z590 VISION D
Specs van de fabrikant	Productinformatie
