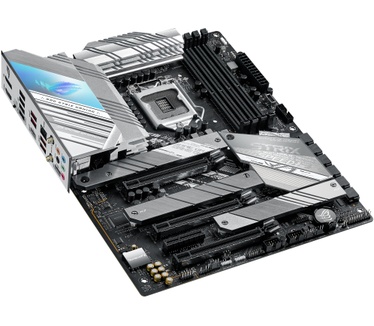

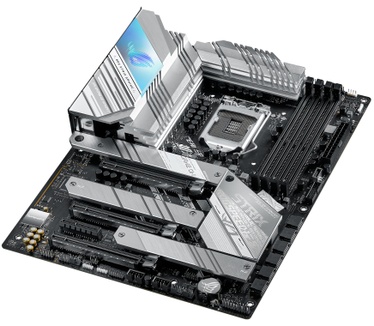

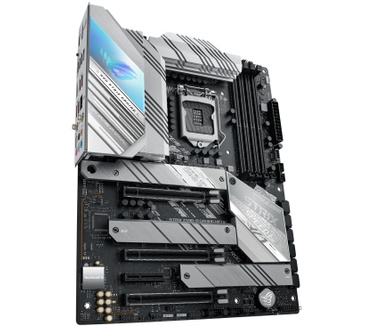

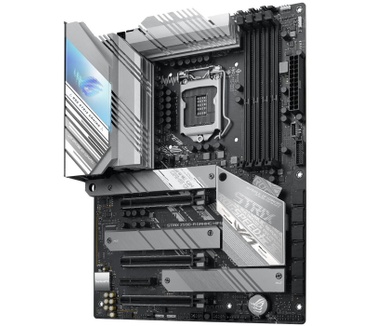

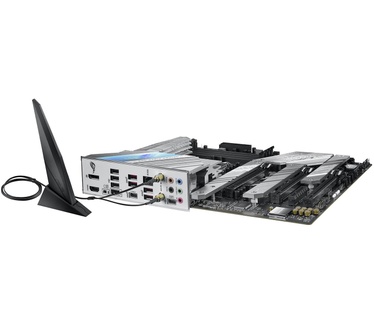

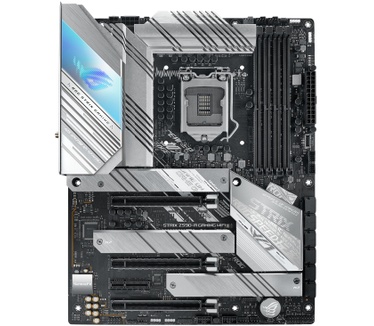

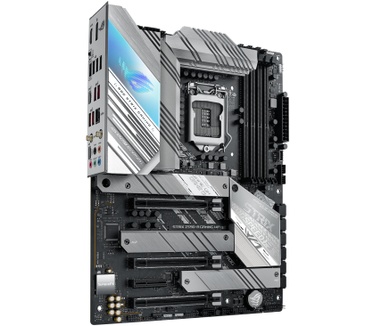

ASUS ROG Strix Z590-A Gaming Wifi

Populaire specificaties
Socket	1200
Moederbordchipset	Intel Z590
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z590

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4), 6x SATA-600

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x4, 3x PCI-e 4.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	Intel® 11th &10th Gen Processors 3 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s) - Intel® 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot * Supports PCIe bandwidth bifurcation for RAID on CPU function. Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** 6 x SATA 6Gb/s ports Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. *When M.2_2 is operating in SATA device, SATA6G_2 will be disabled. **When M.2_3 is operating in SATA device, SATA6G_6 will be disabled.

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Intel I225-V
Netwerkcontroller(s)	I225-V

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0
Wifi-controller	Intel Wi-Fi 6 AX200

Aansluitingen
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Overige aansluitingen	1x TPM header

(Fan) headers
Headers (fan/water)	6x 4-pins (totaal)

RGB
LED verlichting
LED kleur	Multi-color

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang)
Audiochip	Realtek ALC4080

Meer informatie
Product	ASUS ROG Strix Z590-A Gaming Wifi
Categorie	Moederborden
Merk	ASUS
Serie	ROG Strix
Tweakers ID	1658864
EAN	4711081099659
SKU	90MB1660-M0EA, 90MB1660-M0EAY0
Specs van de fabrikant	Productinformatie
