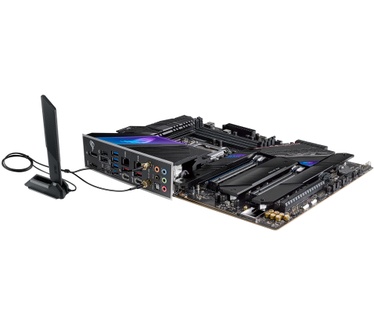

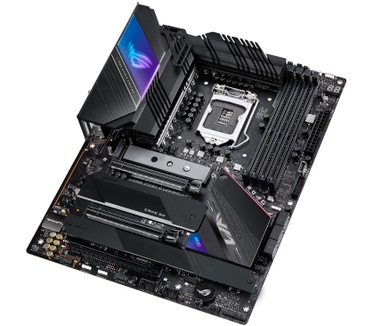

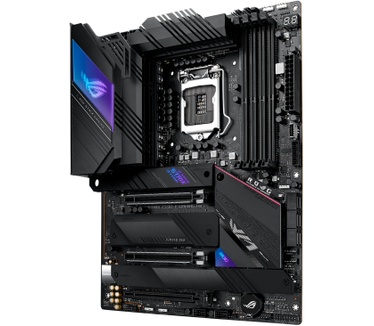

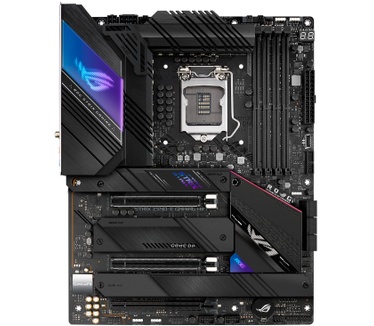

Name: ASUS ROG Strix Z590-E Gaming WIFI
Brand: ASUS
Rating: 4.8 (4 reviews)

Specificaties en productafbeeldingen

Populaire specificaties
Socket	1200
Moederbordchipset	Intel Z590
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet (RJ45)	2x Ethernet 2.5Gbps

Socket en CPU
Socket	1200

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	Intel Z590

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 3.0 x4), 2x M.2 (PCI-e 4.0 x4), 6x SATA-600
Aantal gekoelde M.2 slots	4x
Opmerkingen opslag	Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th &10th Gen Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280/22110 - Intel® 11th processors support PCIe 4.0 x4 mode - Intel® 10th processors support PCIe 3.0 x4 mode Intel® Z590 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. When M.2_4 is operating in SATA device, SATA6G_2 will be disabled. PCIe16_3 shares bandwidth with SATA_56. When PCIe16_ 3 is populated SATA_56 will be disabled. When PCIe16_3 run at default x2 mode, SATA_56 is enabled.
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 3.0 x4, 2x PCI-e 4.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	2 x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th &10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s)* - Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s) - Intel®10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** * Support PCIe bandwidth bifurcation for RAID on CPU function. "**PCIe16_3 shares bandwidth with SATA_56. When PCIe16_ 3 is populated SATA_56 will be disabled. When PCIe16_3 run at default x2 mode, SATA_56 is enabled.

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth	Bluetooth 5.2

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x Thunderbolt header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
USB/TB extern	2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C, 1x USB 3.2 (Gen2x2, 20Gb/s) type-C
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.0
Hoogste DisplayPort versie	DisplayPort 1.4
Overige aansluitingen	1x TPM header
Opmerkingen aansluitingen	Thunderbolt header is aanwezig, onbekend welke versie. Sowieso is een optioneel verkrijgbare uitbreidingskaart nodig.

(Fan) headers
Headers (fan/water)	7x 4-pins (totaal)
(default) Fanconfiguratie	1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x W_PUMP+ header

Overige eigenschappen
Onboard knoppen	Clear CMOS
Eigenschappen moederbord	BIOS update zonder cpu (via USB), Geïntegreerd I/O-shield, Nvidia NVLink (SLI)
Foutdiagnose	Diagnose-leds, HEX-display

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC4080
