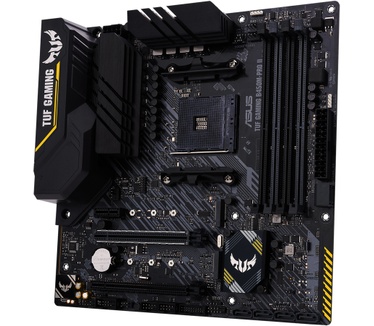

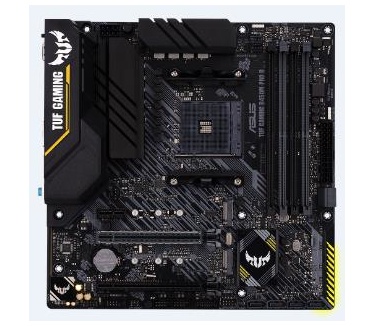

ASUS TUF Gaming B450M-PRO II

Populaire specificaties
Socket	AM4
Moederbordchipset	AMD B450
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	4x DDR4
Ethernet (RJ45)	1x Ethernet 1Gbps
Uitbreidingsslots	1x PCI-e 2.0 x1, 1x PCI-e 2.0 x16, 1x PCI-e 3.0 x16

Socket en CPU
Socket	AM4

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	AMD B450

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Compatible modules	ECC

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x2 + SATA), 1x M.2 (PCI-e 3.0 x4 + SATA), 6x SATA-600
Raid-modi	0, 1, 10

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 2.0 x1, 1x PCI-e 2.0 x16, 1x PCI-e 3.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*1 Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*1 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD B450 chipset : 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*2 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 *1 The M.2_1 shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. *2 The M.2_2 shares bandwidth with the SATA_3/4 ports, and therefore the SATA_3/4 ports cannot be used when an M.2 device is installed.

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps
Netwerkcontroller	Realtek RTL8111H
Netwerkcontroller(s)	Realtek RTL8111H

Aansluitingen
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.0b
Hoogste DisplayPort versie	DisplayPort 1.2
Overige aansluitingen	1x PS/2, 1x TPM header

(Fan) headers
Headers (fan/water)	3x 4-pins (totaal)

RGB
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire
Foutdiagnose

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	2x Analoog (uitgang)
Audiochip	Realtek ALC S1200A

Vrm
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASUS TUF Gaming B450M-PRO II
Categorie	Moederborden
Merk	ASUS
Serie	TUF Gaming
Tweakers ID	1627448
EAN	4718017924665
SKU	90MB1610-M0EAY0, 90MB1610-M0EY0, TUF GAMING B450M-PRO II
Specs van de fabrikant	Productinformatie
