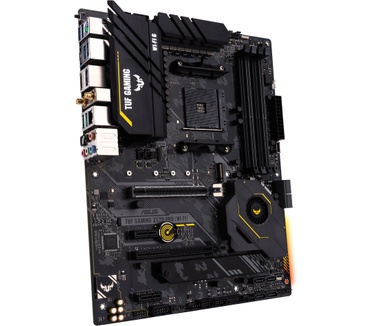

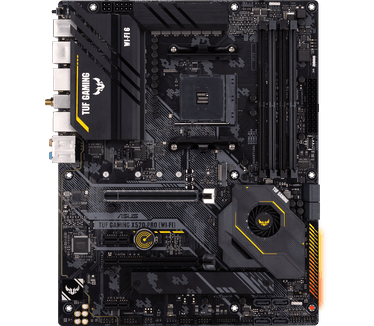

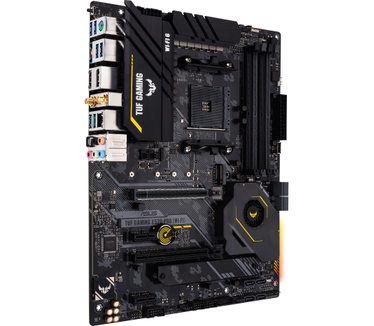

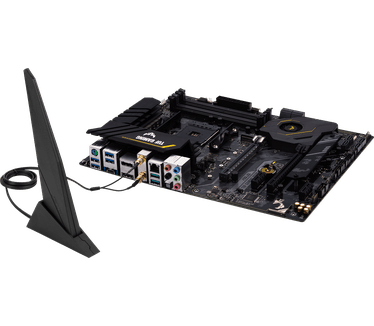

ASUS TUF Gaming X570-PRO (WI-FI)

Populaire specificaties
Socket	AM4
Moederbordchipset	AMD X570
Form Factor	ATX (Standard)
Geheugentype (moederbord)	4x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 2.5Gbps

Socket en CPU
Socket	AM4

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	AMD X570

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Opmerkingen geheugen	4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 4.0 x4 + SATA), 8x SATA-600
Aantal gekoelde M.2 slots	1x
Raid-modi	0, 1, 10
Opmerkingen opslag	3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 4.0 x1, 2x PCI-e 4.0 x16
Totaal PCI-e x16	2x
Opmerkingen uitbreidingsslots	3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 2 x PCIe 4.0 x1

Netwerk
Ethernet (RJ45)	1x Ethernet 2.5Gbps
Netwerkcontroller	Intel I225-V
Netwerkcontroller(s)	I225-V

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.1

Aansluitingen
USB/TB intern (front)	2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2, 10Gbit/s) header
USB/TB extern	4x USB 3.2 (Gen1, 5Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C
Video uit	1x DisplayPort, 1x HDMI
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 1.4
Hoogste DisplayPort versie	DisplayPort 1.2
Overige aansluitingen	1x PS/2, 1x TPM header

(Fan) headers
Headers (fan/water)	6x 4-pins (totaal)
(default) Fanconfiguratie	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector

RGB
RGB-headers	1x 3-pins (ARGB), 2x 4-pins (RGB)
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire, BIOS update zonder cpu (via USB)
Foutdiagnose	Diagnose-leds

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
Audiochip	Realtek ALC S1200A

Vrm
Type stroomvoorziening	Powerstages
Aantal VCore-powerstages	12x
Vrm-koeling	Fan (actief), Heatsink (passief)

Garantie en bijzonderheden
Fabrieksgarantie	3 jaar carry in

Meer informatie
Product	ASUS TUF Gaming X570-PRO (WI-FI)
Categorie	Moederborden
Merk	ASUS
Serie	TUF Gaming
Tweakers ID	1624516
EAN	4718017900324
SKU	90MB15H0-M0EAY0, TUF GAMING X570-PRO (WI-FI)
Specs van de fabrikant	Productinformatie
