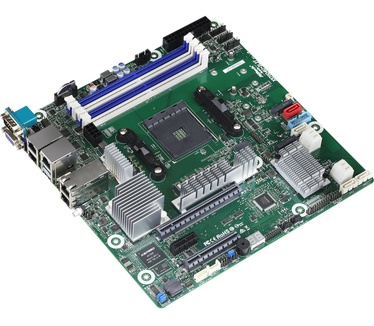

ASRock Rack X570D4U-2L2T

Populaire specificaties
Socket	AM4
Moederbordchipset	AMD X570
Form Factor	Micro-ATX (µATX)
Geheugentype (moederbord)	4x DDR4
Ethernet (RJ45)	2x Ethernet 1Gbps, 2x Ethernet 10G/1G
Uitbreidingsslots	1x PCI-e 4.0 x1, 1x PCI-e 4.0 x8, 1x PCI-e 4.0 x16

Socket en CPU
Socket	AM4
Maximaal TDP processor	105W

Form factor, bios en chipset
Form Factor	Micro-ATX (µATX)
Moederbordchipset	AMD X570

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Compatible modules	ECC
Opmerkingen geheugen	Supports DDR4 260-pin ECC*/non-ECC UDIMM * ECC support varies by CPU

Opslag
Hardeschijf bus (intern)	2x M.2 (PCI-e 4.0 x4 + SATA), 8x SATA-600
Raid-modi	0, 1, 10
Opmerkingen opslag	1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU] 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570] *Supports PCIe3.0 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics
M.2 op CPU	WEL op cpu

Uitbreidingsslots
Uitbreidingsslots	1x PCI-e 4.0 x1, 1x PCI-e 4.0 x8, 1x PCI-e 4.0 x16
Totaal PCI-e x16	1x
Opmerkingen uitbreidingsslots	SLOT6: Latch PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to PCIe4.0 x8 when SLOT4 is occupied *Supports PCIe3.0 x8 when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU] *Disabled when using 2nd Gen AMD Ryzen™ Processors with Radeon™ Graphics

Netwerk
Ethernet (RJ45)	2x Ethernet 1Gbps, 2x Ethernet 10G/1G
Netwerkcontroller	Intel I210
Tweede netwerkcontroller	Intel X550-AT2
Derde netwerkcontroller	Realtek RTL8211
Netwerkcontroller(s)	Intel I210, Realtek RTL8211, X550-AT2

Aansluitingen
USB/TB intern (front)	1x 19-pins USB 3.2 (G1, 5Gbit/s) header
Video uit	1x HDMI, 1x VGA (D-Sub)
Totaal video-uitgangen	2
Hoogste HDMI versie	HDMI 2.0
Overige aansluitingen	1x IPMI, 1x Serieel (9-pins), 1x TPM header

(Fan) headers
Headers (fan/water)	3x 4-pins (totaal)

RGB
LED verlichting

Overige eigenschappen
Foutdiagnose	Piepjes

Vrm
Vrm-koeling	Heatsink (passief)

Meer informatie
Product	ASRock Rack X570D4U-2L2T
Categorie	Moederborden
Merk	ASRock Rack
Tweakers ID	1591676
EAN	4710483932427
SKU	X570D4U-2L2T
Specs van de fabrikant	Productinformatie
