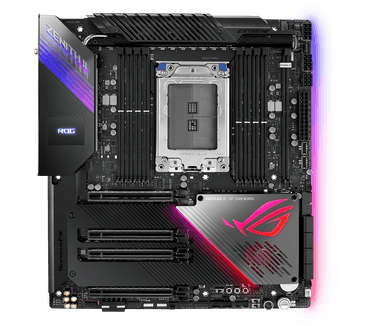

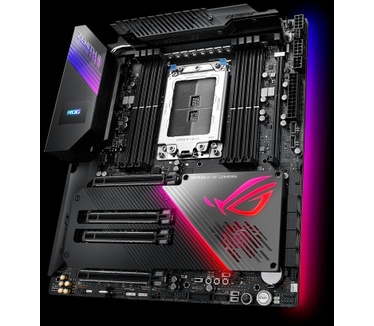

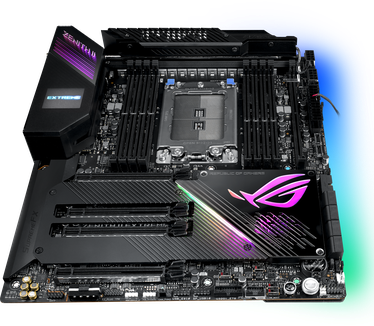

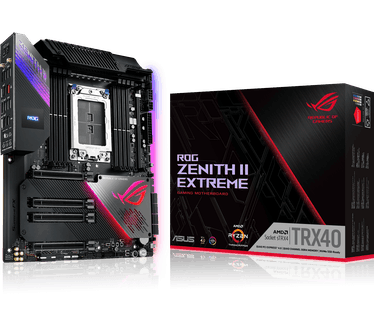

ASUS ROG Zenith II Extreme

Populaire specificaties
Socket	sTRX4
Moederbordchipset	AMD TRX40
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	8x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 1Gbps, 1x Ethernet 10G/1G

Socket en CPU
Socket	sTRX4

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	AMD TRX40

Geheugen
Geheugentype (moederbord)	8x DDR4
Maximum grootte werkgeheugen	256GB
Compatible modules	ECC

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 4.0 x4 + SATA), 3x M.2 (PCI-e 4.0 x4), 8x SATA-600
Raid-modi	0, 1, 10

Uitbreidingsslots
Uitbreidingsslots	4x PCI-e 4.0 x16
Totaal PCI-e x16	4x
Opmerkingen uitbreidingsslots	4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) Supports NVIDIA® 3-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology When the M.2_2 on board is operating in PCIe mode,PCIE x16_4 will running at x4 mode When the M.2_3 on board is operating in PCIe x4 mode, SATA6G_E1-E4 will be disabled

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps, 1x Ethernet 10G/1G
Netwerkcontroller	Marvell AQtion AQC107
Tweede netwerkcontroller	Intel I211AT
Netwerkcontroller(s)	AQC107, Intel I211AT

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0

(Fan) headers
Headers (fan/water)	5x 4-pins (totaal)

RGB
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire, Dual BIOS, Nvidia NVLink (SLI)

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC1220

Meer informatie
Product	ASUS ROG Zenith II Extreme
Categorie	Moederborden
Merk	ASUS
Serie	ROG
Tweakers ID	1495778
EAN	4718017456470
SKU	90MB12C0-M0EAY0
Specs van de fabrikant	Productinformatie
