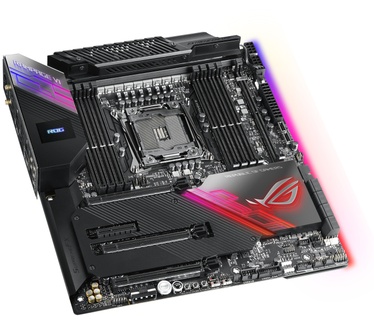

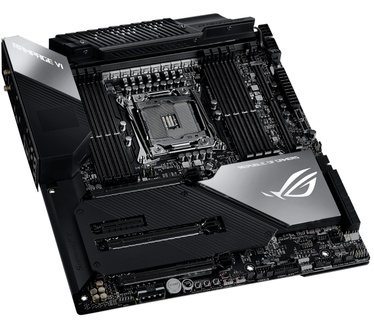

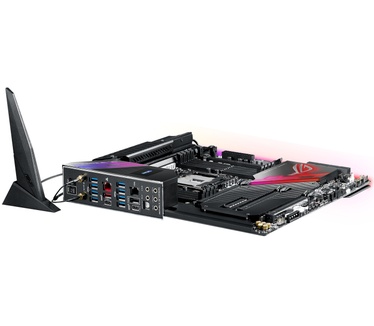

ASUS ROG Rampage VI Extreme Encore

Populaire specificaties
Socket	2066
Moederbordchipset	Intel X299
Form Factor	EATX (Extended ATX)
Geheugentype (moederbord)	8x DDR4
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet (RJ45)	1x Ethernet 1Gbps, 1x Ethernet 10G/1G

Socket en CPU
Socket	2066

Form factor, bios en chipset
Form Factor	EATX (Extended ATX)
Moederbordchipset	Intel X299

Geheugen
Geheugentype (moederbord)	8x DDR4
Maximum grootte werkgeheugen	256GB

Opslag
Hardeschijf bus (intern)	1x M.2 (PCI-e 3.0 x4 + SATA), 3x M.2 (PCI-e 3.0 x4), 8x SATA-600

Uitbreidingsslots
Uitbreidingsslots	2x PCI-e 3.0 x1, 3x PCI-e 4.0 x1
Opmerkingen uitbreidingsslots	Expansion Slots 44-Lane CPU- (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU) 3 x PCIe 3.0 x16 (x16/x16/x4 or x16/x8/x4 modes) *2 28-Lane CPU- (Intel® Core™ i7 7000 X-Series CPU) 3 x PCIe 3.0 x16 (x16/x8/x4 mode) Intel® X299 Chipset 1 x PCIe 3.0 x4 *3 Storage Intel® Core™ X-Series Processors Family : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4 Intel® Rapid Storage Technology Enterprise supports Intel® X299 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*5 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready *1 When the PCIe runs x16/x16/x8 mode, DIMM.2_2 will be disabled. *2 When PCIe runs x16/x16/x4 mode, DIMM.2_2 will be disabled. *3 The PCIe 3.0 x4 slot shares bandwidth with M.2_2. *4-1 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x8 mode on 48-Lane CPU. *4-2 DIMM.2_2 will be disabled when the PCIe runs x16/x16/x4 mode on 44-Lane CPU. *4-3 DIMM.2 will be disabled when using 28-Lane CPU. *5 The PCIe 3.0 x4 slot shares bandwidth with M.2_2.

Netwerk
Ethernet (RJ45)	1x Ethernet 1Gbps, 1x Ethernet 10G/1G
Netwerkcontroller	Marvell AQtion AQC107
Tweede netwerkcontroller	Intel I219V
Netwerkcontroller(s)	AQC107, Intel I219V

Wifi en bluetooth
Verbinding (wlan)	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0

(Fan) headers
Headers (fan/water)	5x 4-pins (totaal)

RGB
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire, Dual BIOS, Nvidia NVLink (SLI)

Audio
Audio kanalen	8 (7.1)
Audio-aansluitingen	4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	SupremeFX

Garantie en bijzonderheden
Bijzonderheden	1.77" LiveDash OLED display

Meer informatie
Product	ASUS ROG Rampage VI Extreme Encore
Categorie	Moederborden
Merk	ASUS
Serie	ROG
Tweakers ID	1444012
EAN	4718017478144
SKU	90MB11K0-M0EAY0, ROG-Rampage-VI-Extreme-Encore
Specs van de fabrikant	Productinformatie
