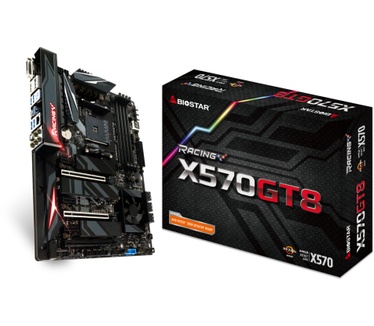

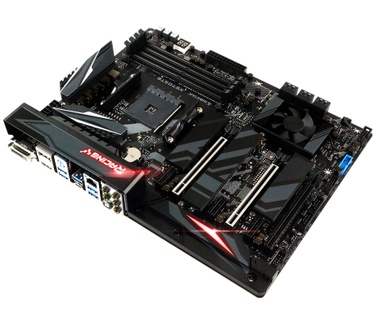

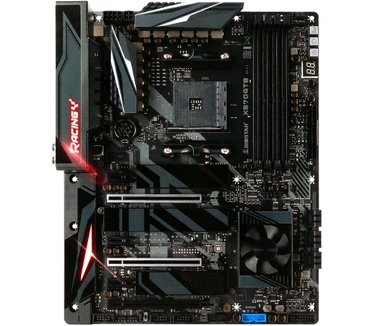

Name: Biostar Racing X570GT8
Brand: Biostar

Specificaties en productafbeeldingen

Socket en CPU
Socket	AM4
Maximaal TDP processor	95W

Form factor, bios en chipset
Form Factor	ATX (Standard)
Moederbordchipset	AMD X570

Geheugen
Geheugentype (moederbord)	4x DDR4
Maximum grootte werkgeheugen	128GB
Compatible modules	ECC

Opslag
Hardeschijf bus (intern)	3x M.2 (PCI-e 4.0 x4 + SATA), 6x SATA-600
Raid-modi	0, 1, 10

Uitbreidingsslots
Uitbreidingsslots	3x PCI-e 4.0 x1, 3x PCI-e 4.0 x16
Totaal PCI-e x16	3x
Opmerkingen uitbreidingsslots	2x M.2 (Key M) Slot (PCIE-M2_1/ PCIE-M2_3) : Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCI-E Gen4 x4 (64Gb/s) & SATA III (6.0Gb/s) SSD 1x M.2 (Key M) Slot (PCIE-M2_2) : Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module Supports PCI-E Gen4 x4 (64Gb/s) & SATA III (6.0Gb/s) SSD * M.2 (Key M) Slot (PCIE-M2_1) : Supports PCI-E Gen4 x4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse. * When SATA3U/ SATA3L connector is occupied, the PCIE-M2_3 slot only supports SATA mode. 1x PCIe 4.0 x16 Slot (PEX16_1) * Note : Supports x16 (x16, x8) lanes with AMD® RyzenTM 1st, 2nd and 3rd Gen processors. Supports x8 lanes with AMD® RyzenTM with Radeon Vega Graphics processors. 1x PCIe 4.0 x16 Slot: Supports x8 mode (PEX16_2) * Note : Supports x8 lanes with AMD® RyzenTM 1st, 2nd and 3rd Gen processors. PEX16_2 slot only AMD Matisse and Pinnacle support. 1x PCIe 4.0 x16 Slot: Supports x4 mode (PEX16_SB_1) * Note 3x PCIe 4.0 x1 Slot * Note * According to different CPUs will have different speeds. * Note: PCIe 4.0 speed only for AMD® RyzenTM 3rd Gen Matisse.

(Fan) headers
Headers (fan/water)	5x 4-pins (totaal)

RGB
LED verlichting
LED kleur	Multi-color

Overige eigenschappen
Eigenschappen moederbord	AMD Crossfire

Audio
Audio kanalen	8 (7.1)

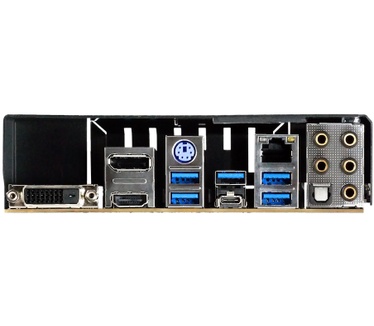

Audio-aansluitingen	3x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF)
Audiochip	Realtek ALC1220

Verbeter productgegevens

Biostar Racing X570GT8
