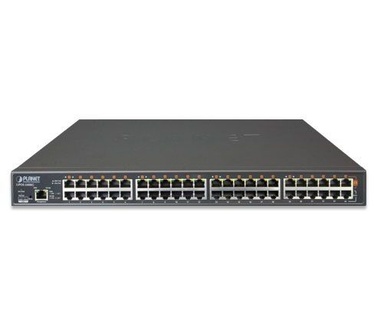

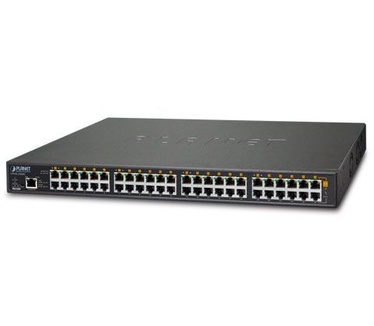

Planet UPOE-2400G 24-poort UPOE Gigabit managed POE-injector

Soort
Soort accessoire (netwerk)	PoE injector

Netwerk
Ethernet (RJ45) Ethernet (RJ45) Wat is de snelheid van de data-overdracht via ethernet uitgedrukt in Mbps. Voor 10G ethernet zijn 4 opties, afhankelijk of deze compatibel is met 5G, 2,5G en/of 100M.	24x Ethernet 1Gbps

Ondersteuning
IPv6 ondersteuning	Ja

Garantie en bijzonderheden
Fabrieksgarantie	2 jaar carry in
Bijzonderheden	- 24 ports Gigabit - ULTRA POE - Managed injector HUB - 800 WATT Power budget - 19" rack size PLANET Ultra PoE Managed Injector Hub series, a cost-effective and quick Ultra PoE solution, is designed to perfectly upgrade an existing network infrastructure to Ultra Power over Ethernet network system without replacing the existing Ethernet Switch. Ready to Deploy Next Generation Power over Ethernet The UPOE-2400G is a high-density, rack-mountable managed Ultra PoE injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 24 10/100/1000BASE-T Ethernet ports featuring Ultra PoE injector with a total PoE budget of 800 watts. Each PoE port can deliver up to 60-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 60W and 802.3at/af powered device (PD). The UPOE-2400G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises. Quick and Easy PoE Network Deployment The UPOE-2400G is installed between a regular Ethernet Switch and the PDs. There are totally 48 RJ45 STP ports on the front panel of the UPOE-2400G, of which the 24 ports are on the lower stack functioned as "Data input" while the other 24 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions. With data and Power over Ethernet from one unit, the UPOE-2400G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. 802.3bt Ready -- 60 Watts of Power over 4-Pair UTP System The UPOE-2400G Ultra PoE solution adopts the IEEE 802.3at/af PoE standard. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat.5e/6 Ethernet cabling. In the new 4-pair system, the UPOE-2400G is able to deliver per port up to 60 watts of power to each remote PoE compliant powered device. It possesses double amount of power capability than the conventional 802.3at PoE and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: 　■ PoE PTZ speed dome 　■ Any network device that needs higher PoE power to work normally 　■ Thin-client 　■ AIO (all-in-one) touch PC, point of sale (POS) and information kiosks 　■ Remote digital signage display Hardware Interface “Data” Input Ports: 24 x RJ45 “Data + Power” Output Ports: 24 x RJ45 Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX Data Rate 10/100/1000Mbps LED System: SYS PWR x 1 (Green) PoE Failure x 1 ( Red ) Fan Failure x 2 ( Red ) Management port x 2: 1000 (Green), 10/100(Orange) Per PoE Port: Ultra 60W PoE-in-use x 1 (Green) 802.3at/af PoE-in-use x 1 (Orange) Power Requirements 100-240V AC, 50/60 Hz, 15A Power Consumption 1000 watts (max.)/3412BTU Ventilation Fan x 3 Dimensions (W x D x H) 440 x 300 x 44.5 mm, 1U height Enclosure Metal Weight 5.5kg Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus 4-pair Ultra PoE PoE Power Supply Type End-span/Mid-span/UPoE(Ultra PoE) Power Pin Assignment Pair 1 end-span: 1/2(-), 3/6(+) Pair 2 mid-span: 4/5(+), 7/8(-) UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-) PoE Power Output DC 54V/60-watt PoE via 4-pair DC 54V/30-watt PoE via 2-pair PoE Power Budget 800 watts/2729BTU Number of 60W PDs can be powered 13 Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered 24 Number of 802.3at PDs (Class 1, 2, 3) can be powered 24 Number of 802.3at PDs (Class 0, 4) can be powered 24 Management Management Interface Web, PLANET Smart Discovery Lite PoE Management Power limit by consumption and allocation PoE admin mode Per port power schedule Per port power enable/disable Power feeding priority Over temperature protection Current per port usage and status Total power consumption PD alive check Scheduled power recycling Management Feature Setup of system/management functions Web firmware upgrade SNMP trap for alarm notification of events

Meer informatie
Product	Planet UPOE-2400G 24-poort UPOE Gigabit managed POE-injector
Categorie	Netwerkaccessoires
Merk	Planet
Tweakers ID	1243125
EAN	4711605282369
SKU	UPOE-2400G
Specs van de fabrikant	Productinformatie
